LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Mercury
>>
2005
>>
Mountaineer 2WD V8-4.6L SOHC VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>

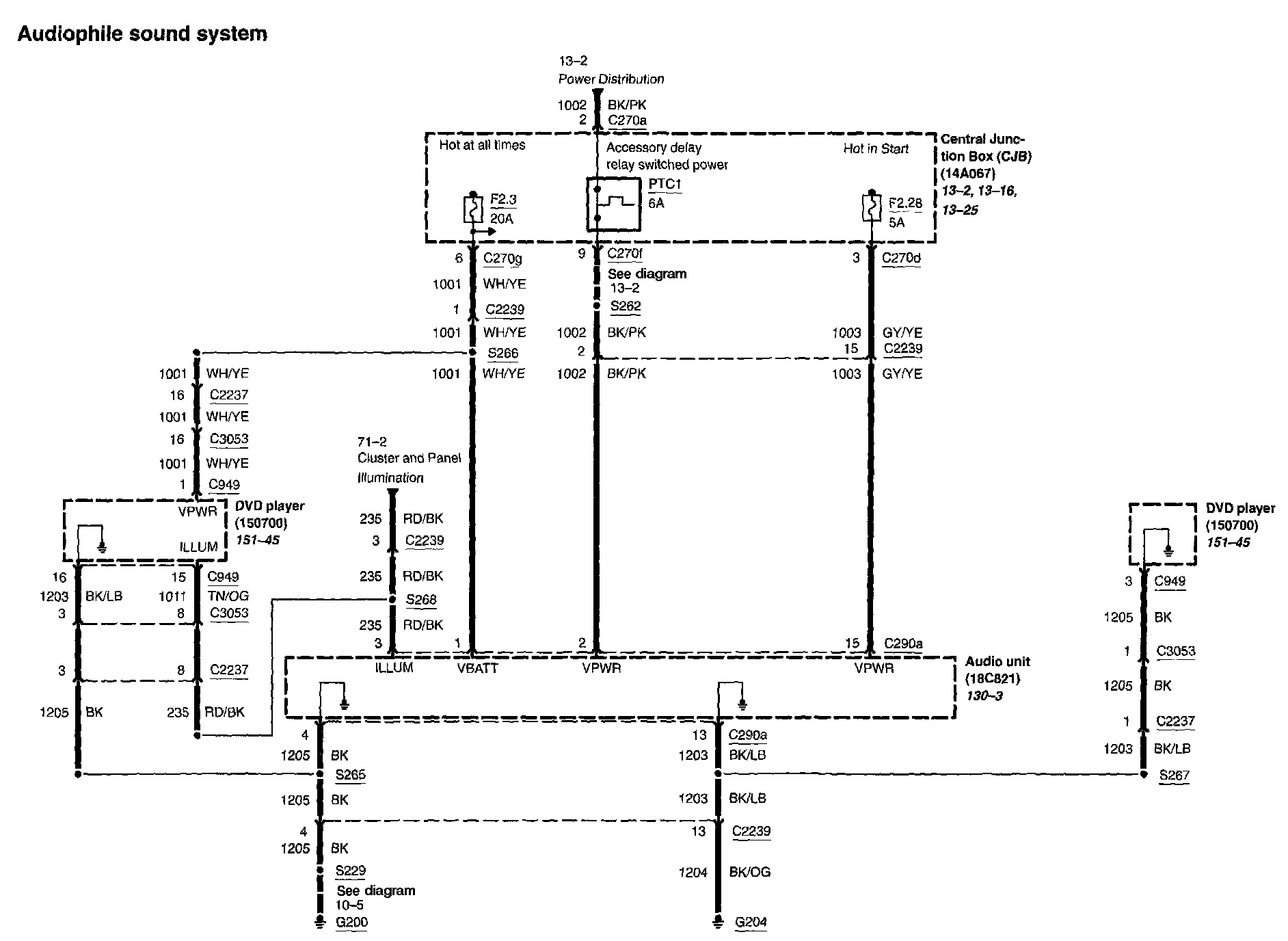

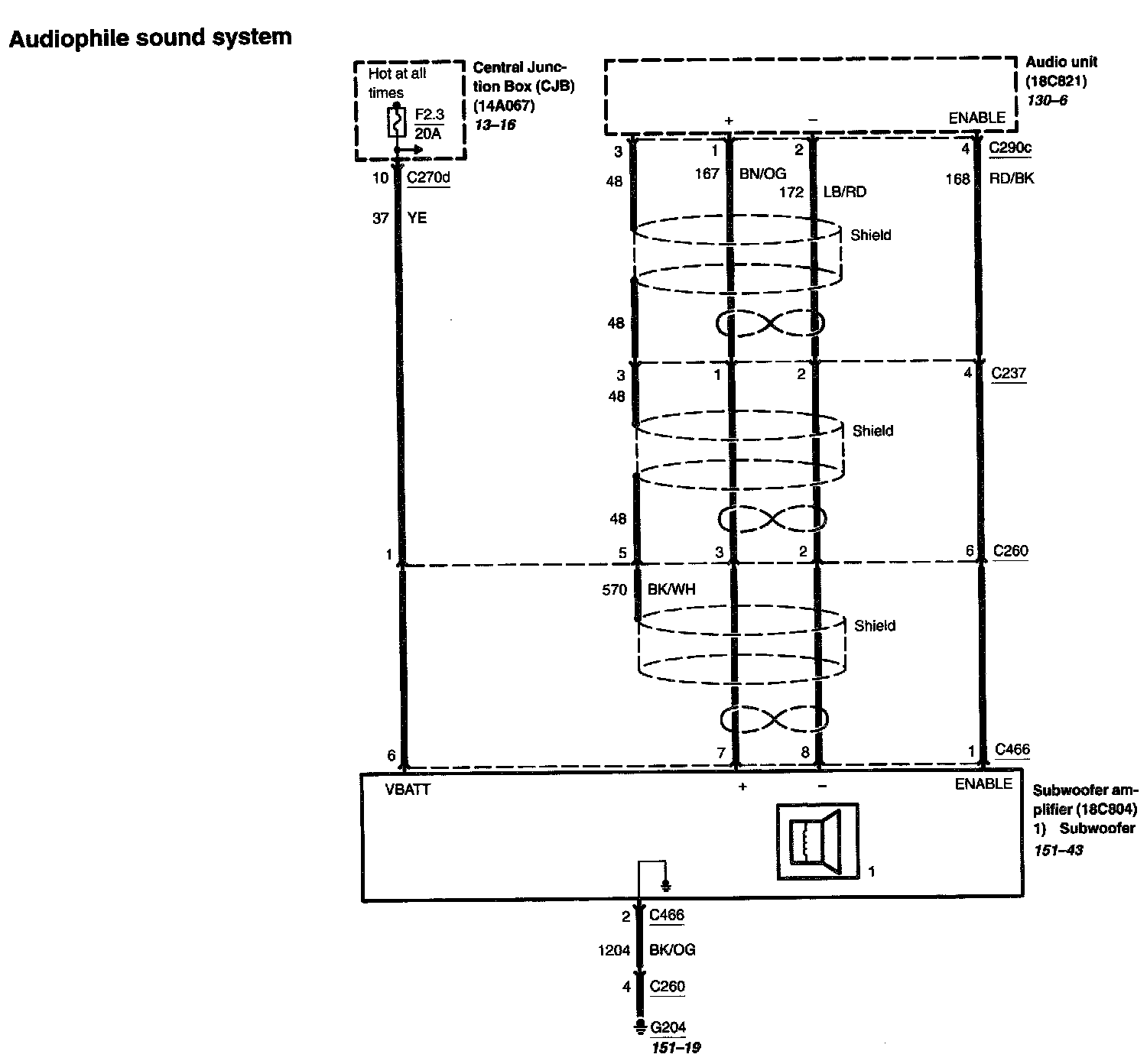

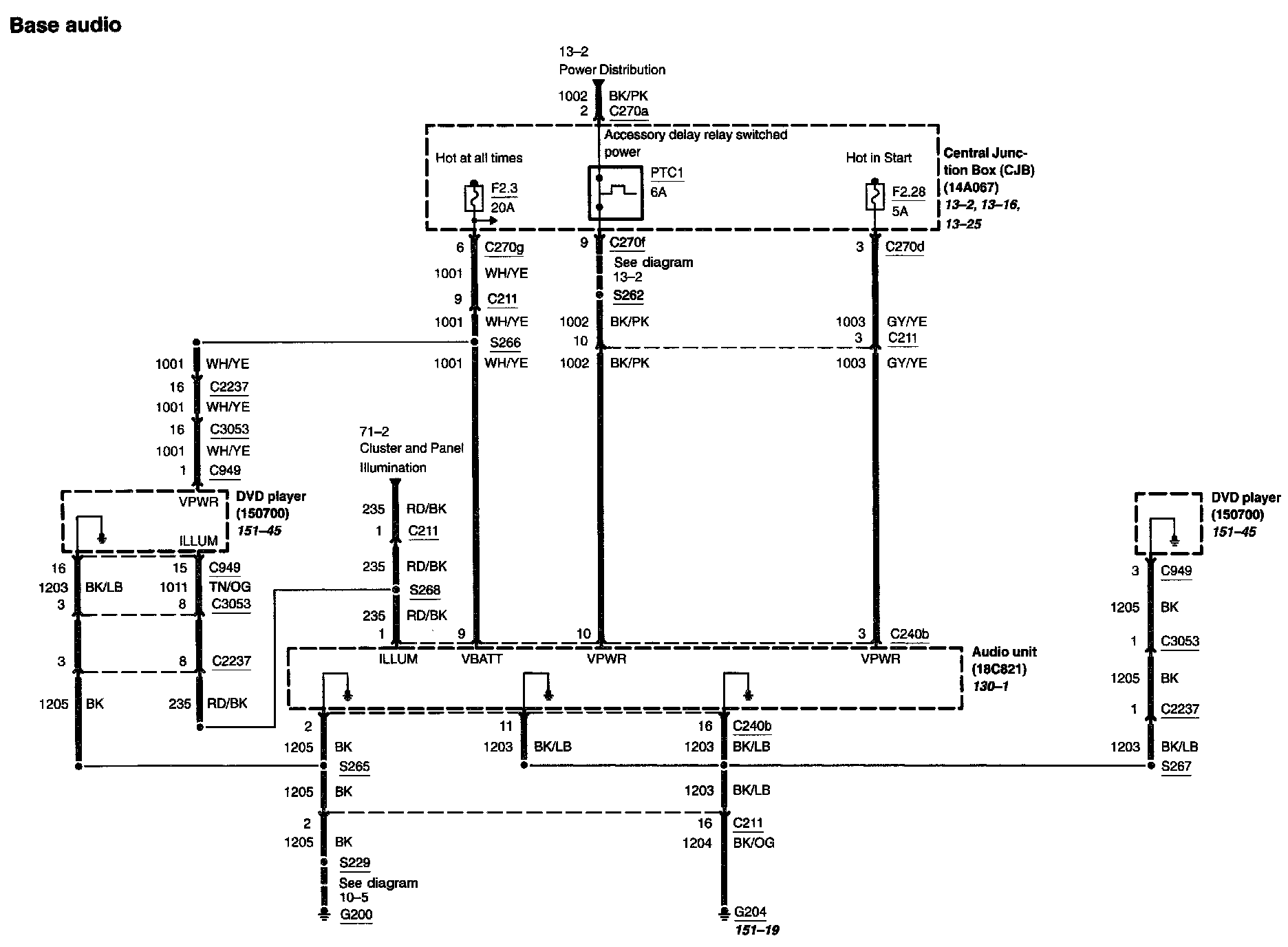

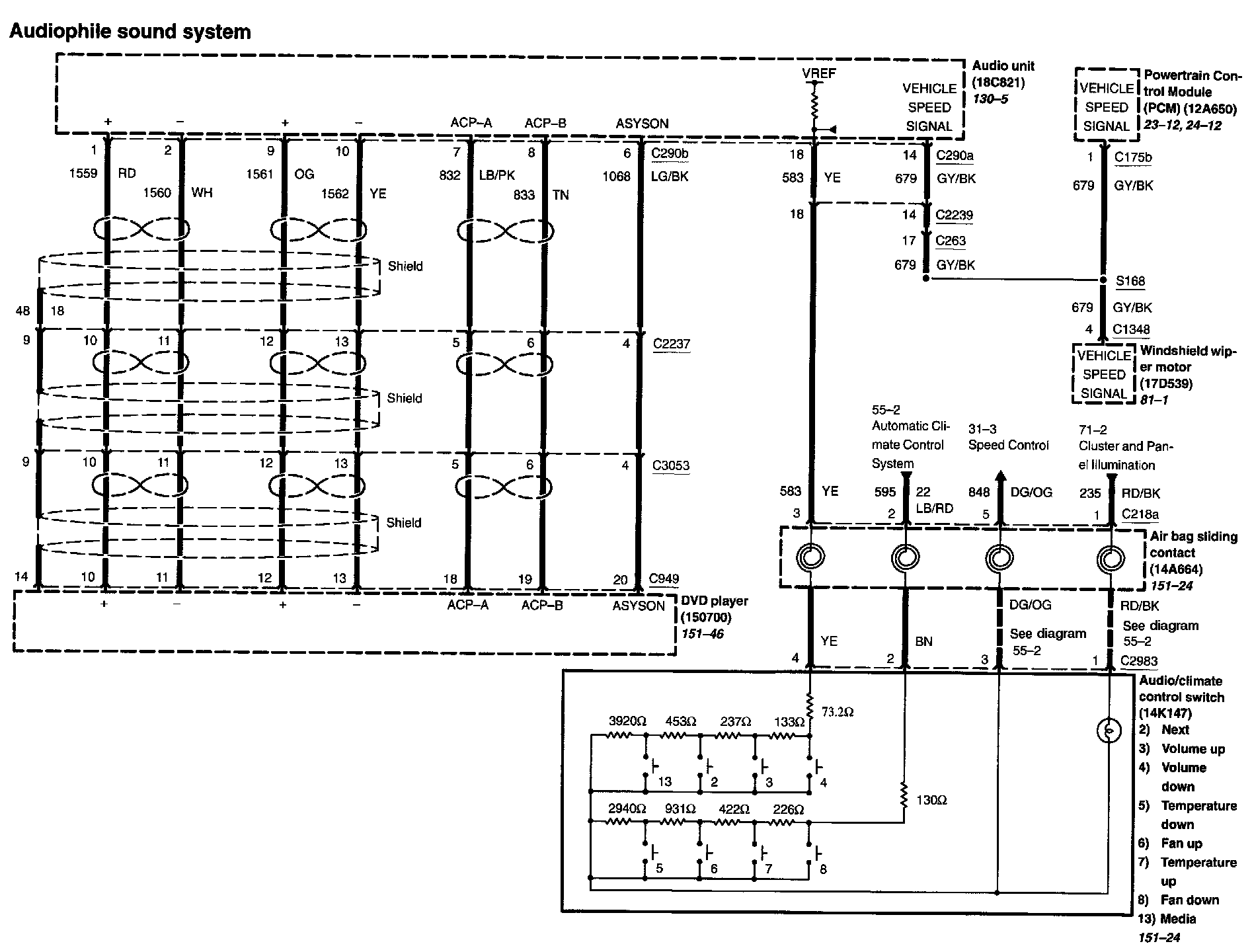

Diagram Set 132 (Video System)
Diagram Set 132 (Video System)
132-1:
132-2:
132-3:
132-4:
132-5:
132-6:
132-7:
