Diagnostic Vacuum Diagrams - Dual Automatic Temperature Control System

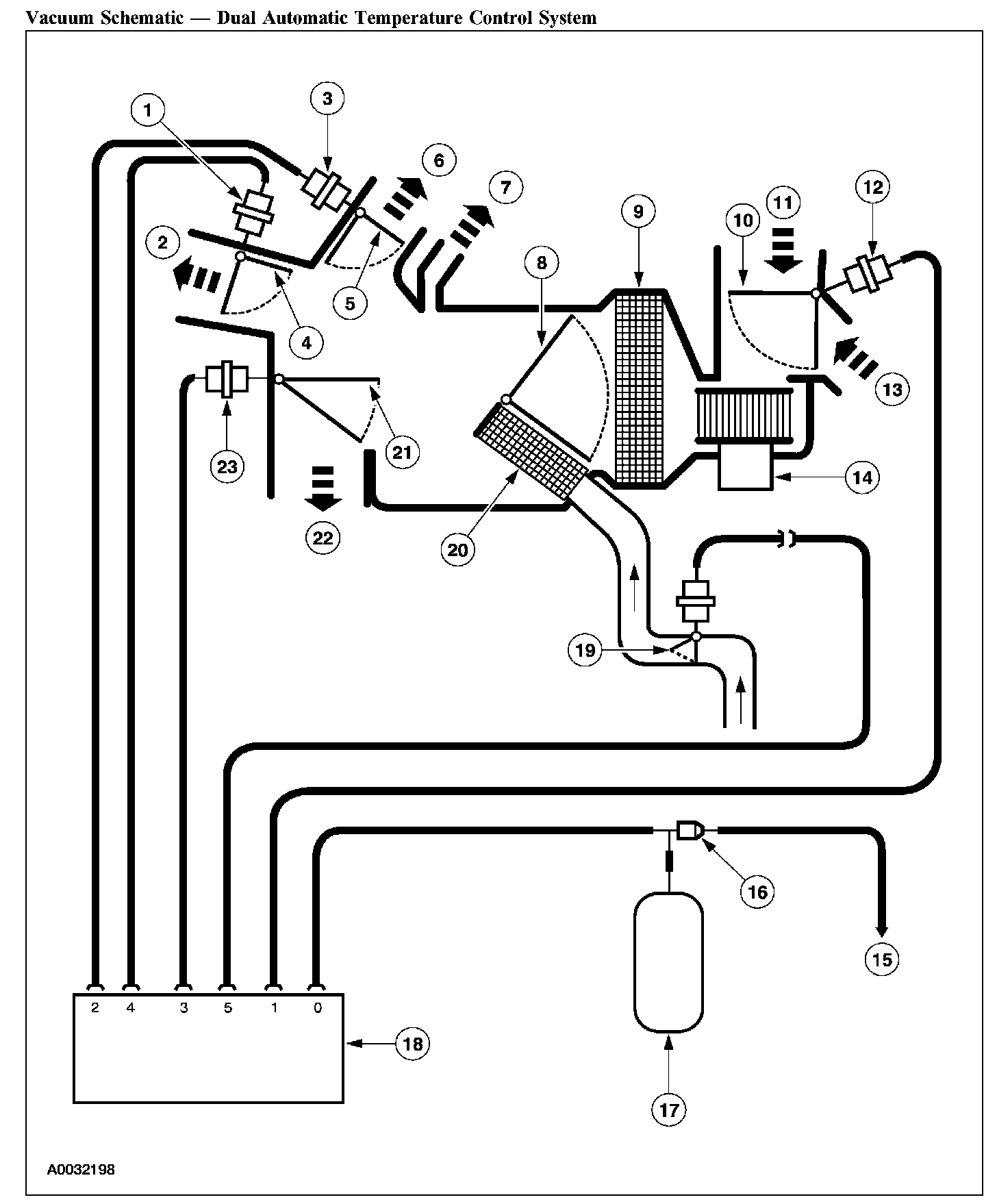

Vacuum Schematic - Dual Automatic Temperature Control System (Part 1):

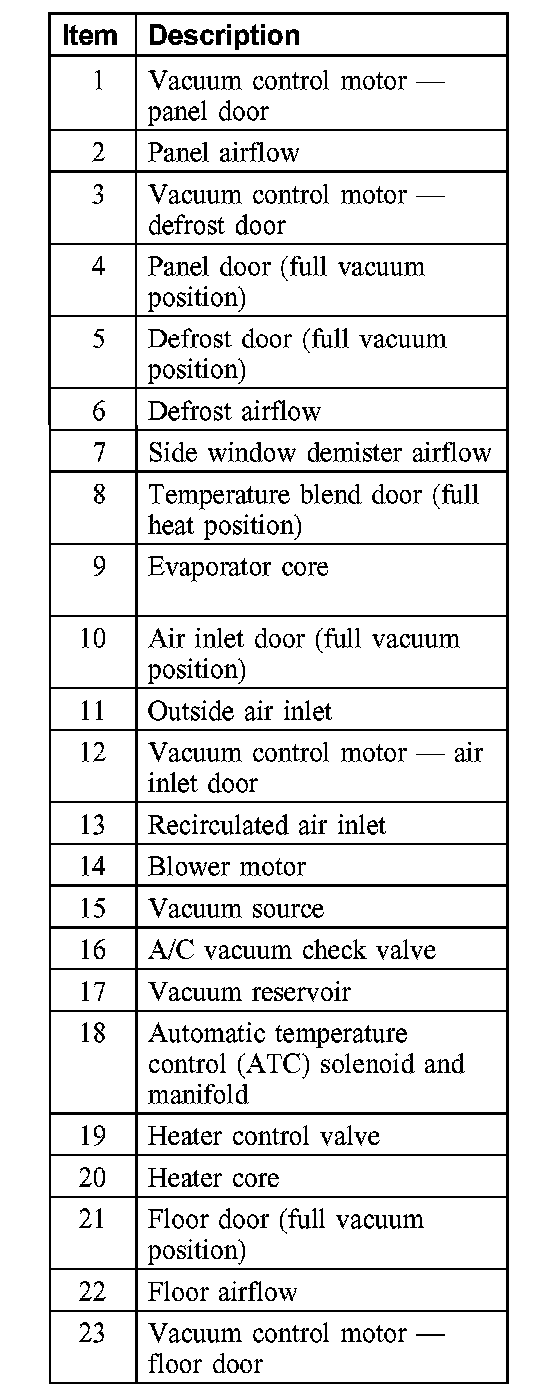

Vacuum Schematic - Dual Automatic Temperature Control System (Part 2):

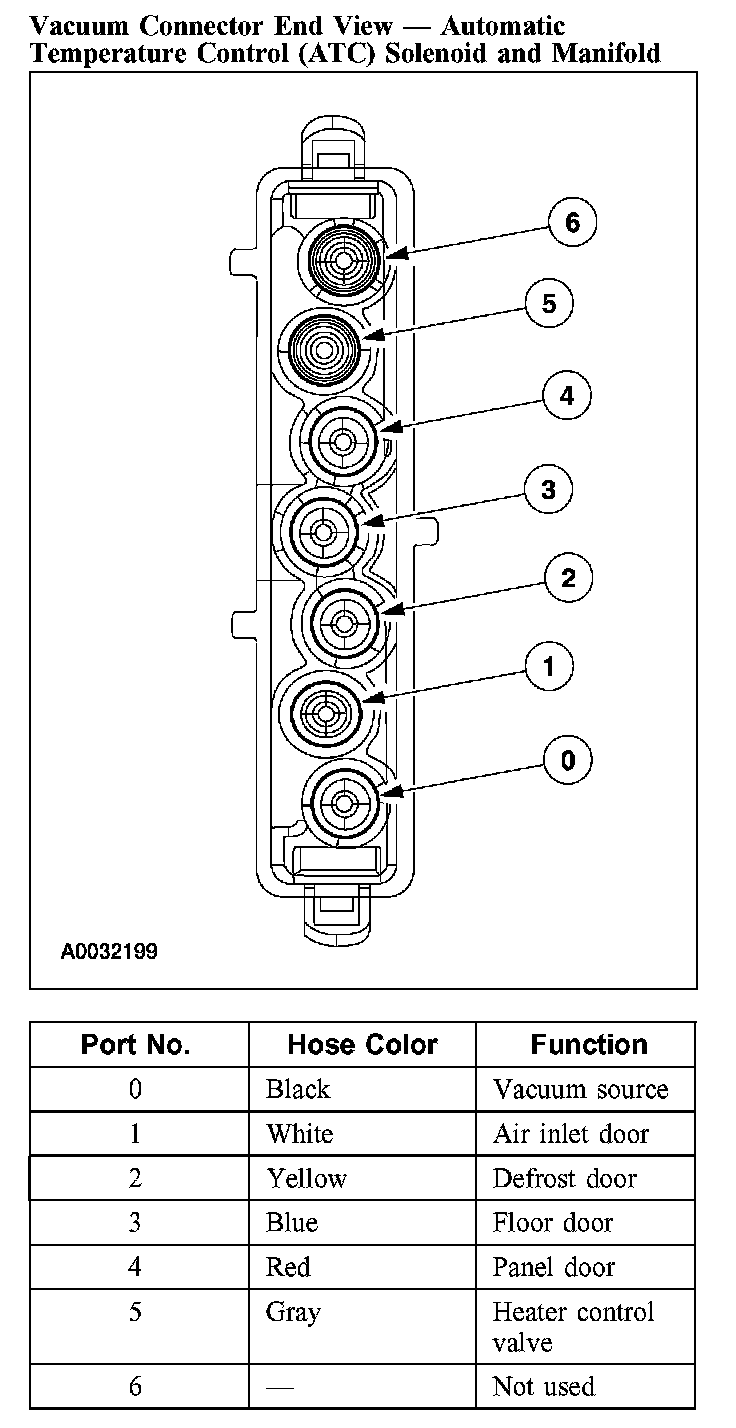

Vacuum Connector End View - Automatic Temperature Control (ATC) Solenoid And Manifold:

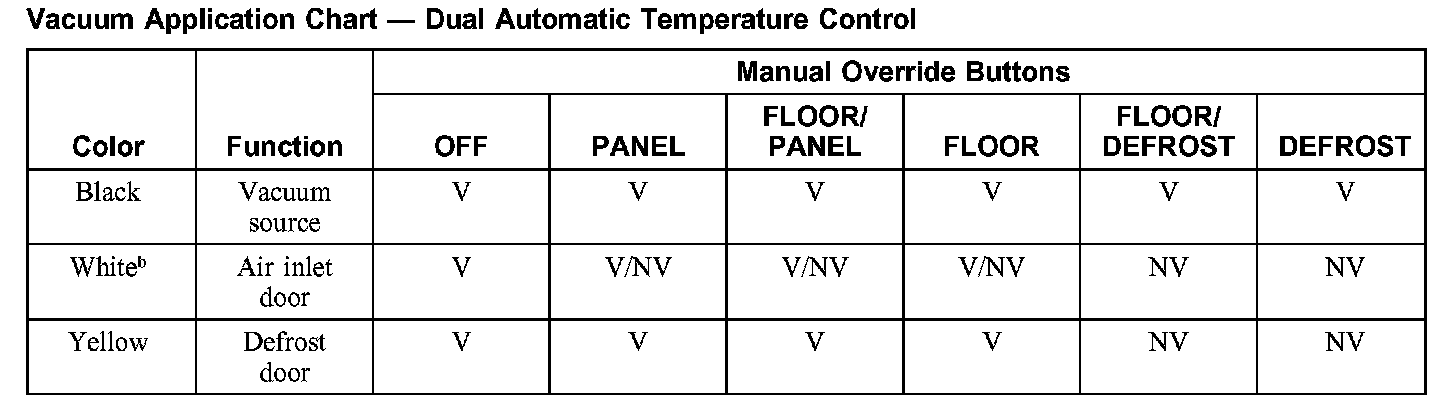

Vacuum Application Chart - Dual Automatic Temperature Control (Part 1):

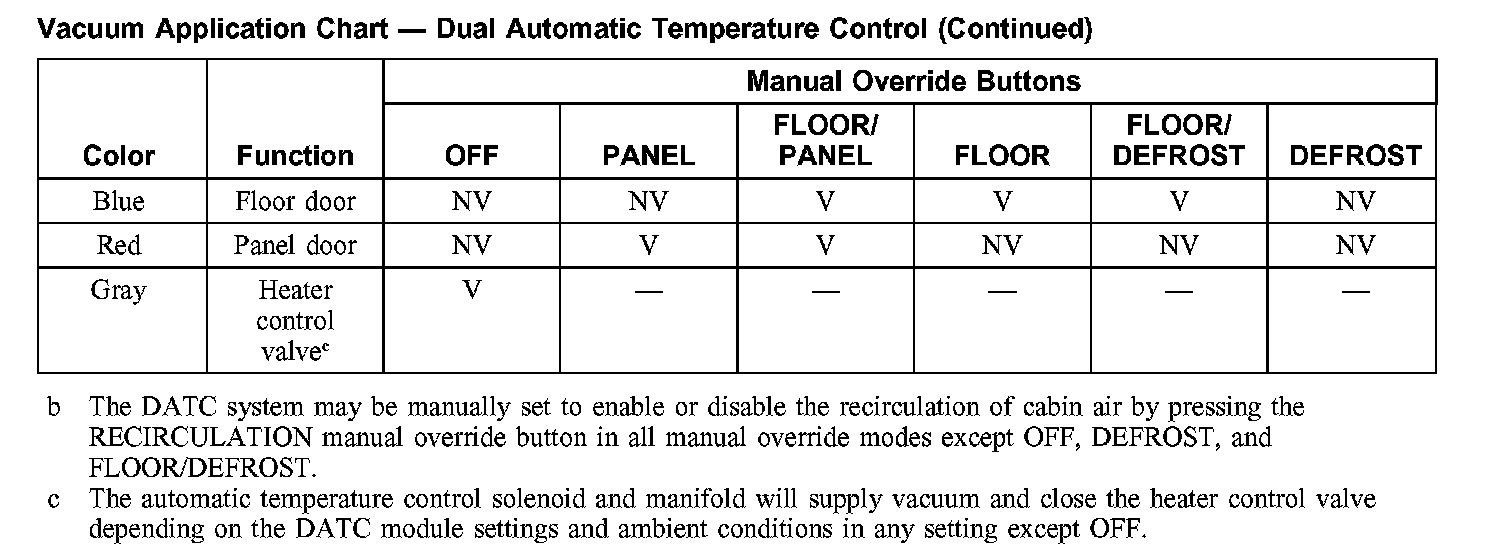

Vacuum Application Chart - Dual Automatic Temperature Control (Part 2):
