Oil Pan, Engine

TORQUE SPECIFICATIONS

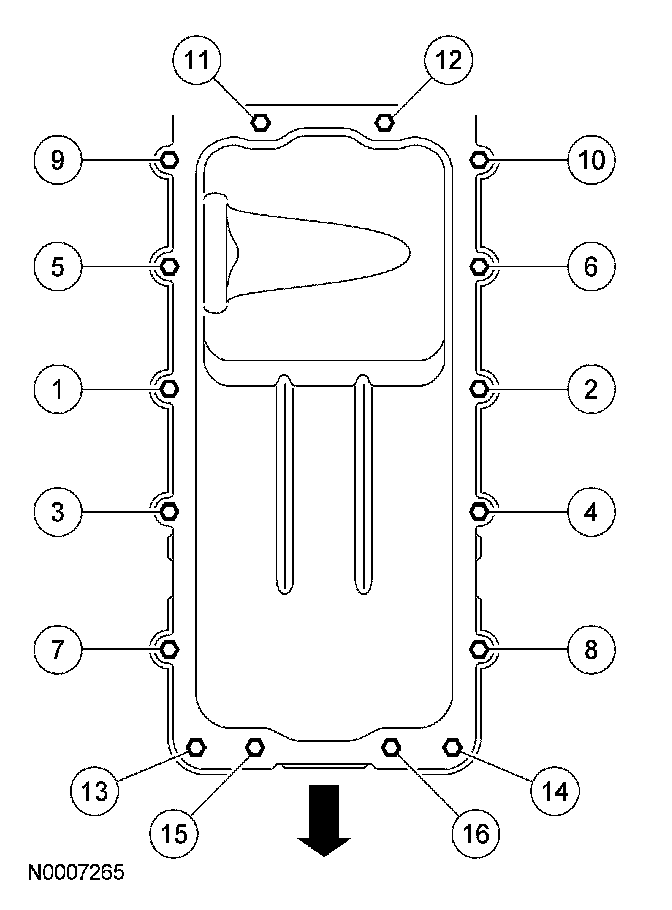

Oil Pan Bolts
Stage 1 2 Nm (18 inch lbs.)
Stage 2 20 Nm (15 ft. lbs.)
Stage 3 additional 60 degrees
