Front Suspension Balljoint Inspection Job Aid

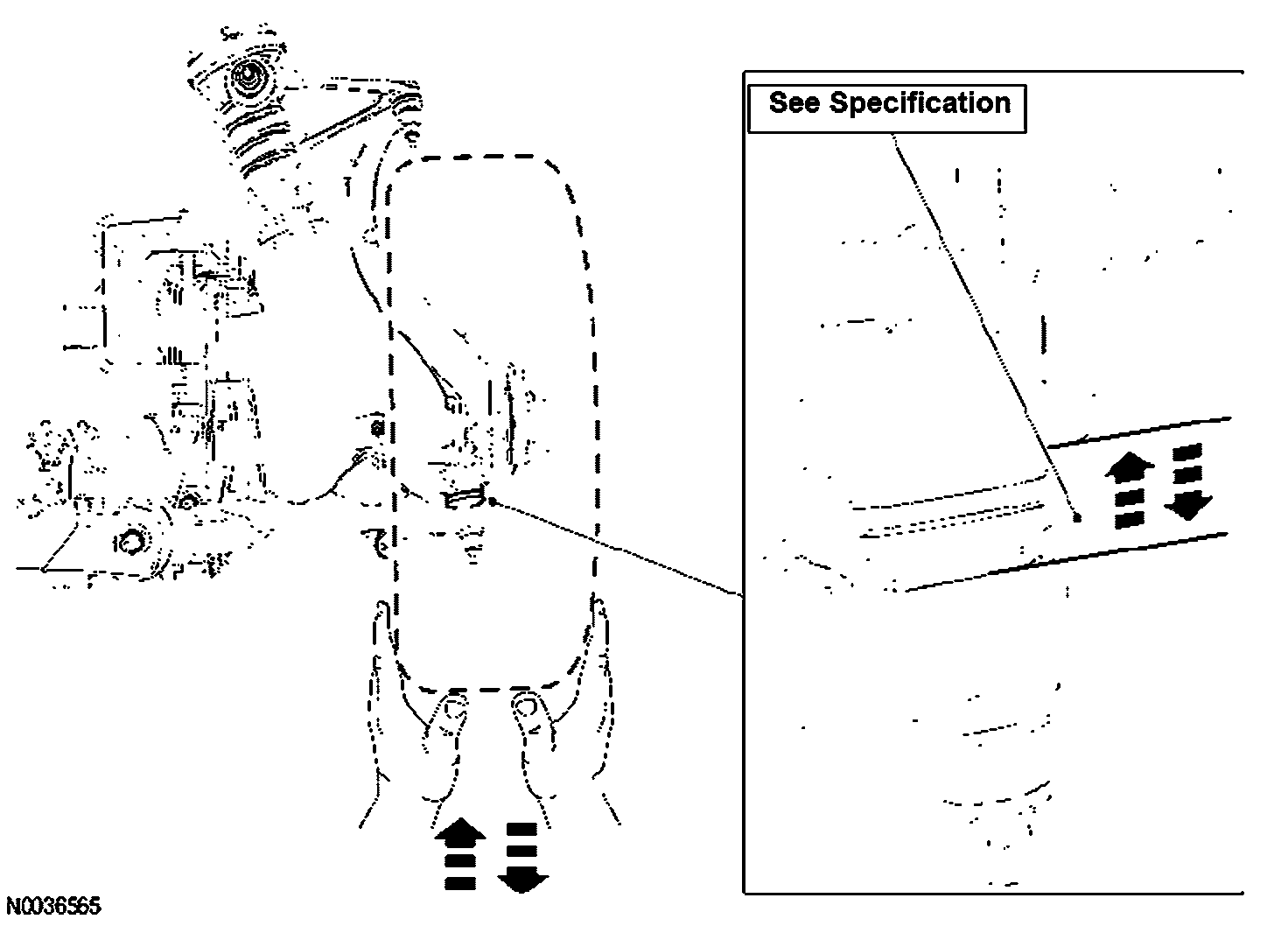

Front Lower Ball Joint

Measurement Between lower control arm and knuckle

Deflection Vertical 0-0.030 in (0-0.8mm)






Reference Diagram A

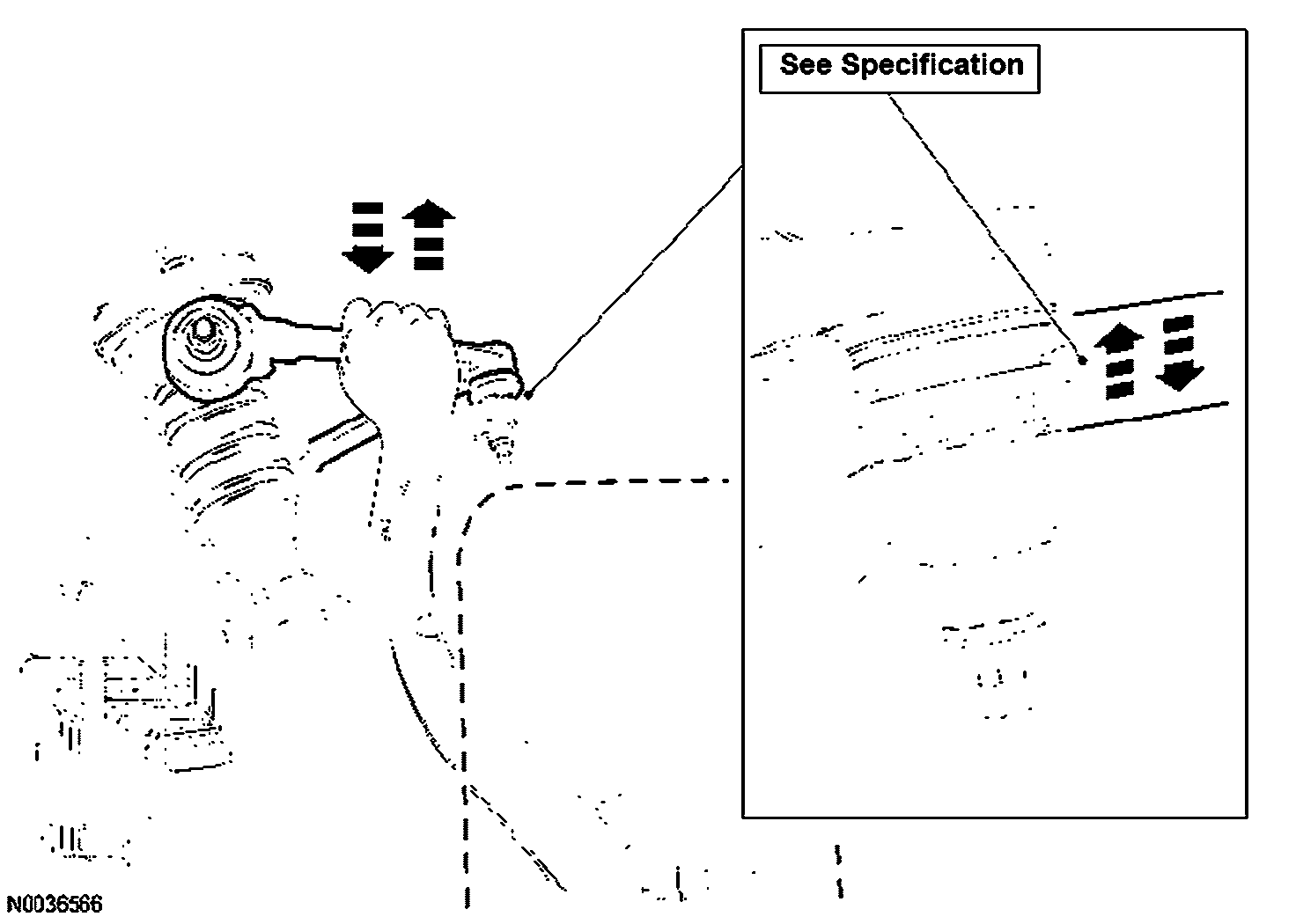

Front Upper Ball Joint

Measurement Between upper control arm and knuckle

Deflection Vertical 0.8 mm (0-0.03 in)






Reference Diagram C
