Rear Window Wiper Motor

REAR WINDOW WIPER MOTOR

Removal and Installation
1. Remove the rear wiper pivot arm.

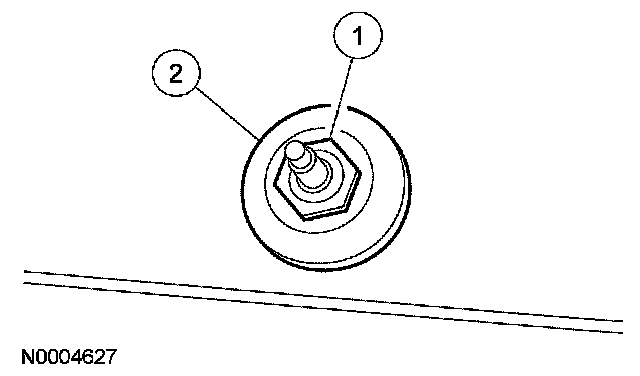

2. Remove the rear window wiper motor grommet.
1 Remove the nut.
- To install, tighten to 7 Nm (62 lb-in).

2 Remove the grommet.

3. Open the liftgate window.

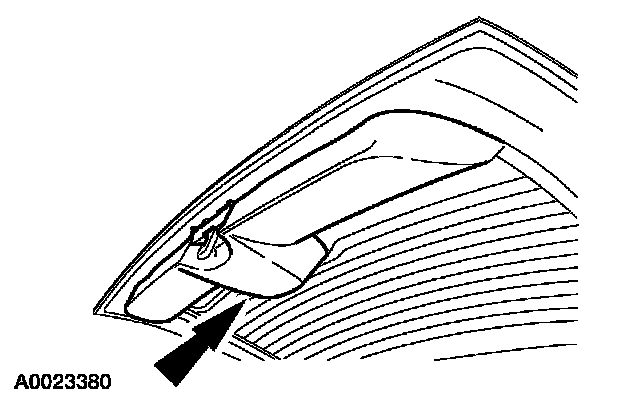

4. Remove the wiper motor cover trim panel.

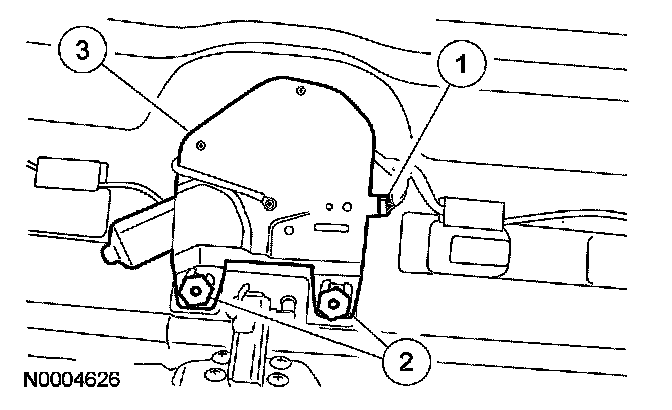

5. Remove the rear window wiper motor.
1 Disconnect the electrical connector.
2 Remove the 2 rear window wiper motor nuts.
- To install, tighten to 7 Nm (62 lb-in).

3 Remove the rear window wiper motor.

6. To install, reverse the removal procedure.
