Wiper Pivot Arm - Front

WIPER PIVOT ARM - FRONT

Removal and Installation

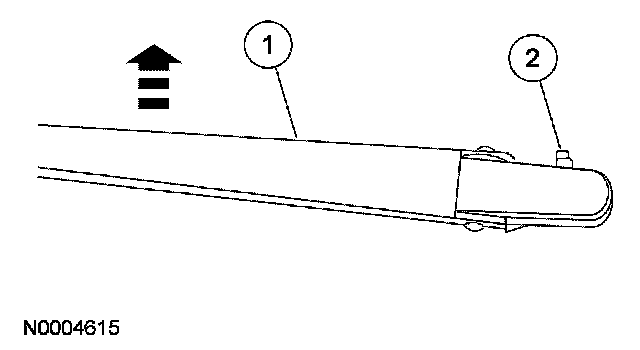

1. Remove the wiper pivot arm.
1 Pull up on the pivot arm.
2 Pull out on the retaining tab and remove the pivot arm.

2. NOTE: The windshield wiper motor must be cycled to make sure that it is in the PARK position. If necessary, adjust the wiper pivot arms.

To install, reverse the removal procedure.
