Wiper and Washer System - Exploded View Windshield Washer Pump and Reservoir

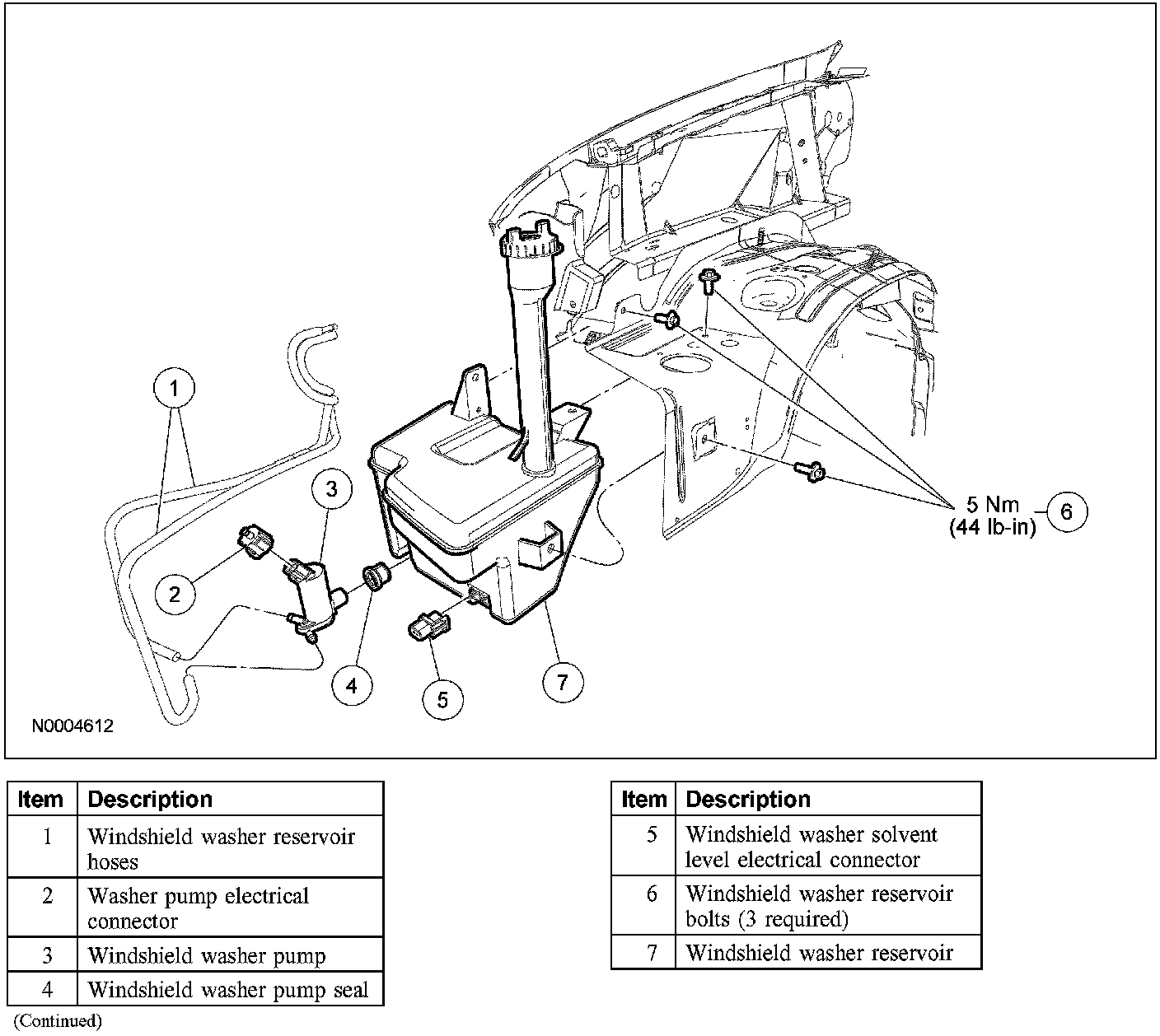

WIPER AND WASHER SYSTEM - EXPLODED VIEW, WINDSHIELD WASHER PUMP AND RESERVOIR

Removal and Installation







1. For additional information, refer to the procedures.
