Turn Signal Lamp: Service and Repair

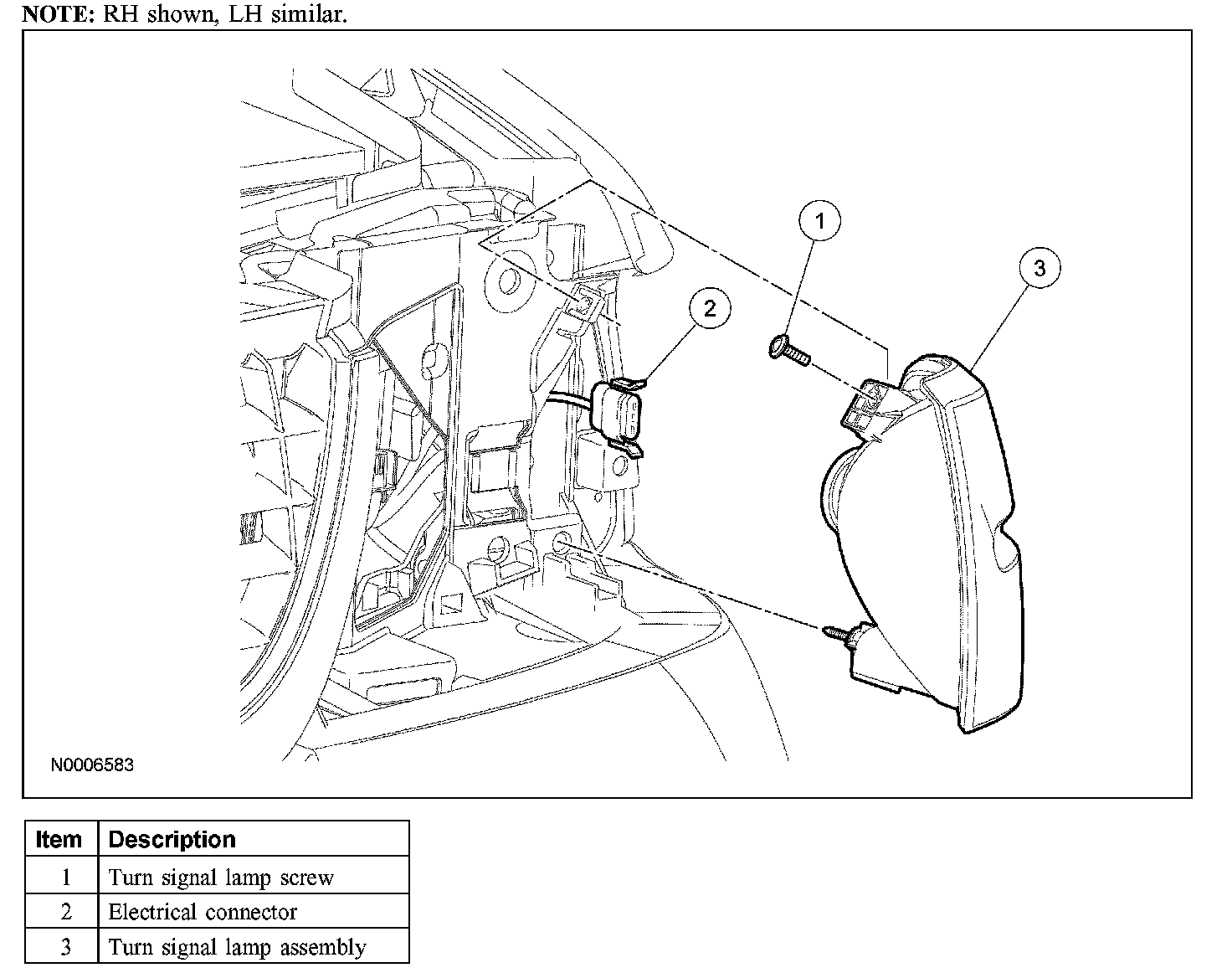

SIDE TURN SIGNAL LAMP







Removal and Installation
1. Remove the headlamp.
2. Remove the turn signal lamp screw.
3. Disconnect the electrical connector.
4. Remove the turn signal lamp assembly.
5. To install, reverse the removal procedure.
