Trailer Tow RH Turn Relay C1187, Trailer Tow LH Turn Relay C1188, Trailer Tow Reversing Lamp Relay C4023

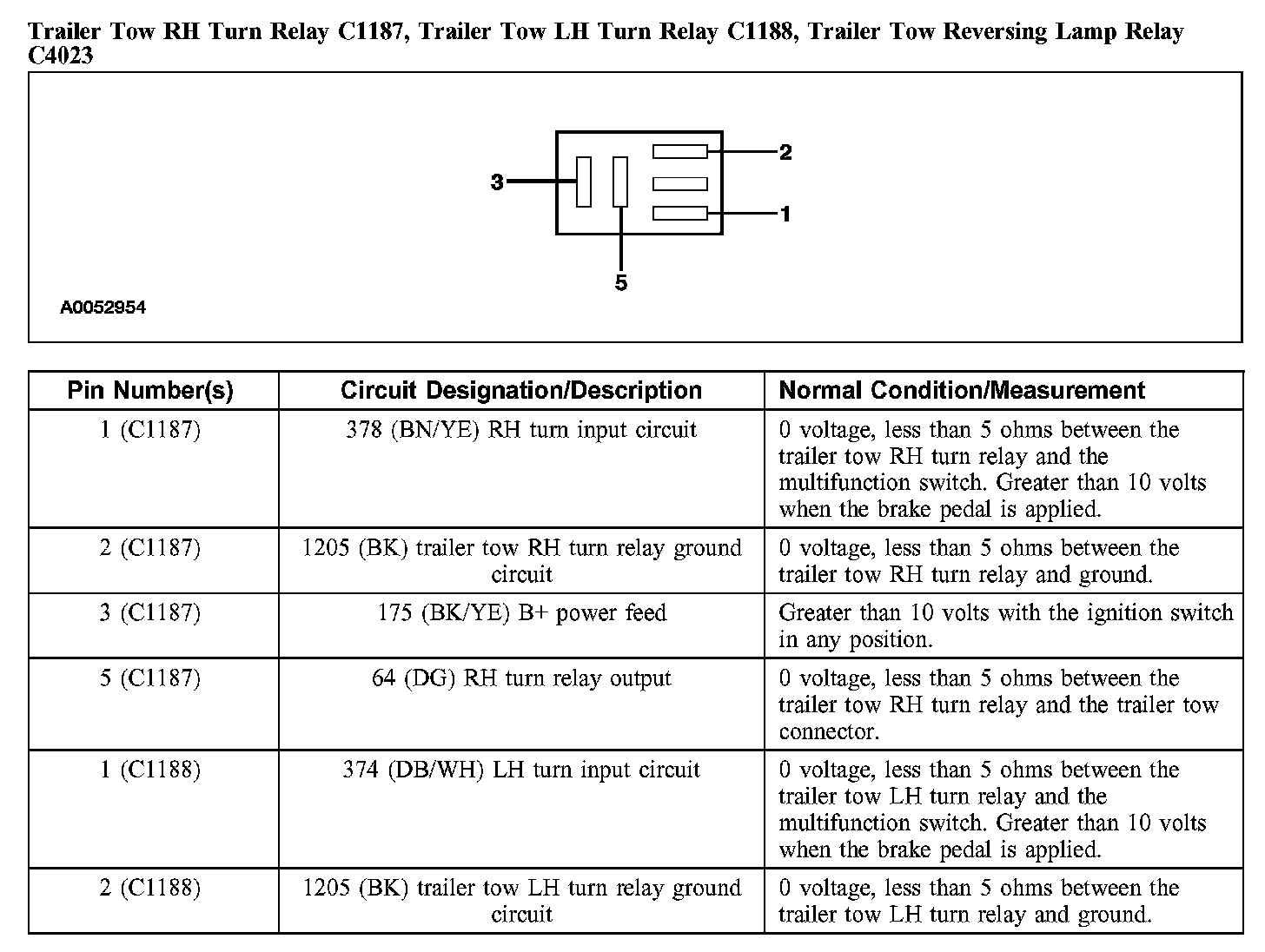

Trailer Tow RH Turn Relay C1187, Trailer Tow LH Turn Relay C1188, Trailer Tow Reversing Lamp Relay C4023 (Part 1):

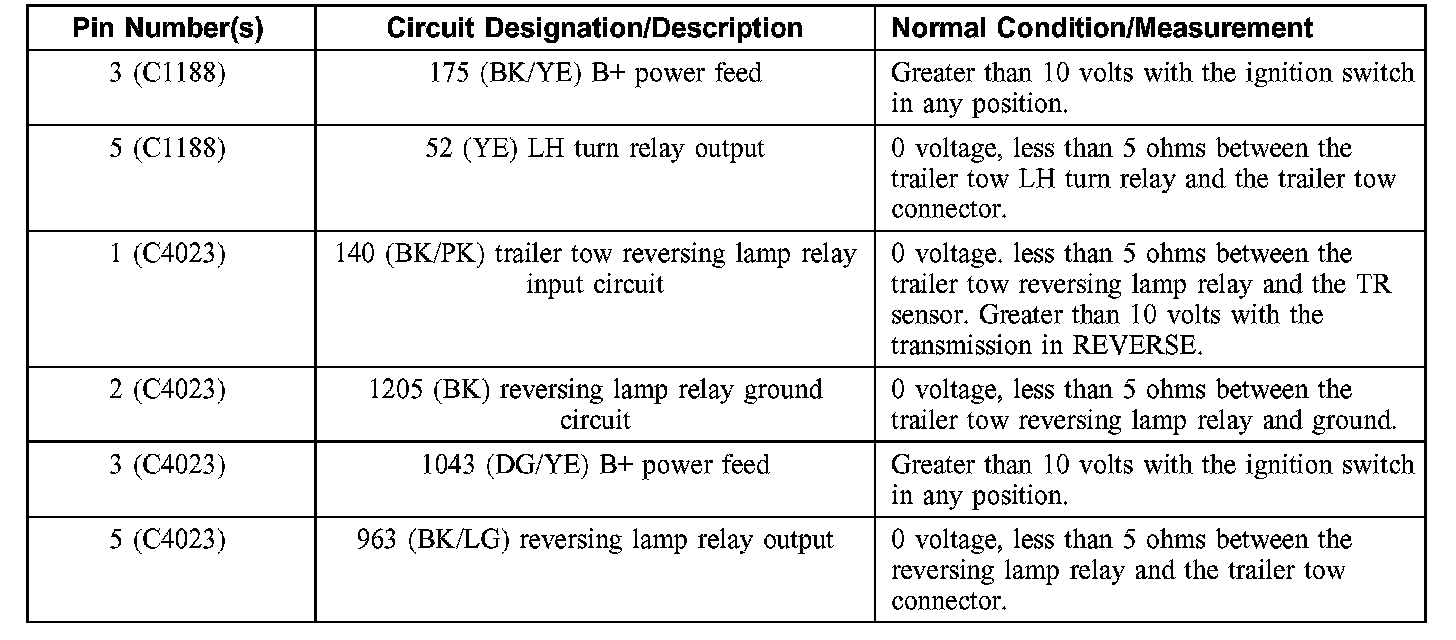

Trailer Tow RH Turn Relay C1187, Trailer Tow LH Turn Relay C1188, Trailer Tow Reversing Lamp Relay C4023 (Part 2):
