Instrument Panel Bulb: Service and Repair

WARNING INDICATOR BULB

Removal and Installation
1. Remove the instrument cluster.

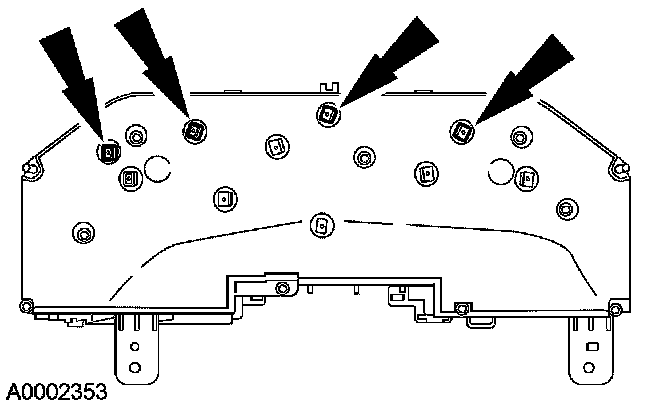

2. NOTE: To remove a warning indicator bulb, rotate the bulb one quarter turn counterclockwise and lift it out from the instrument cluster.

Remove the warning indicator bulb(s) in question.

3. To install, reverse the removal procedure.
