Rear Seat Cushion - 60 Percent of 60/40 Bench, Second Row

REAR SEAT CUSHION - 60 PERCENT OF 60/40 BENCH, SECOND ROW

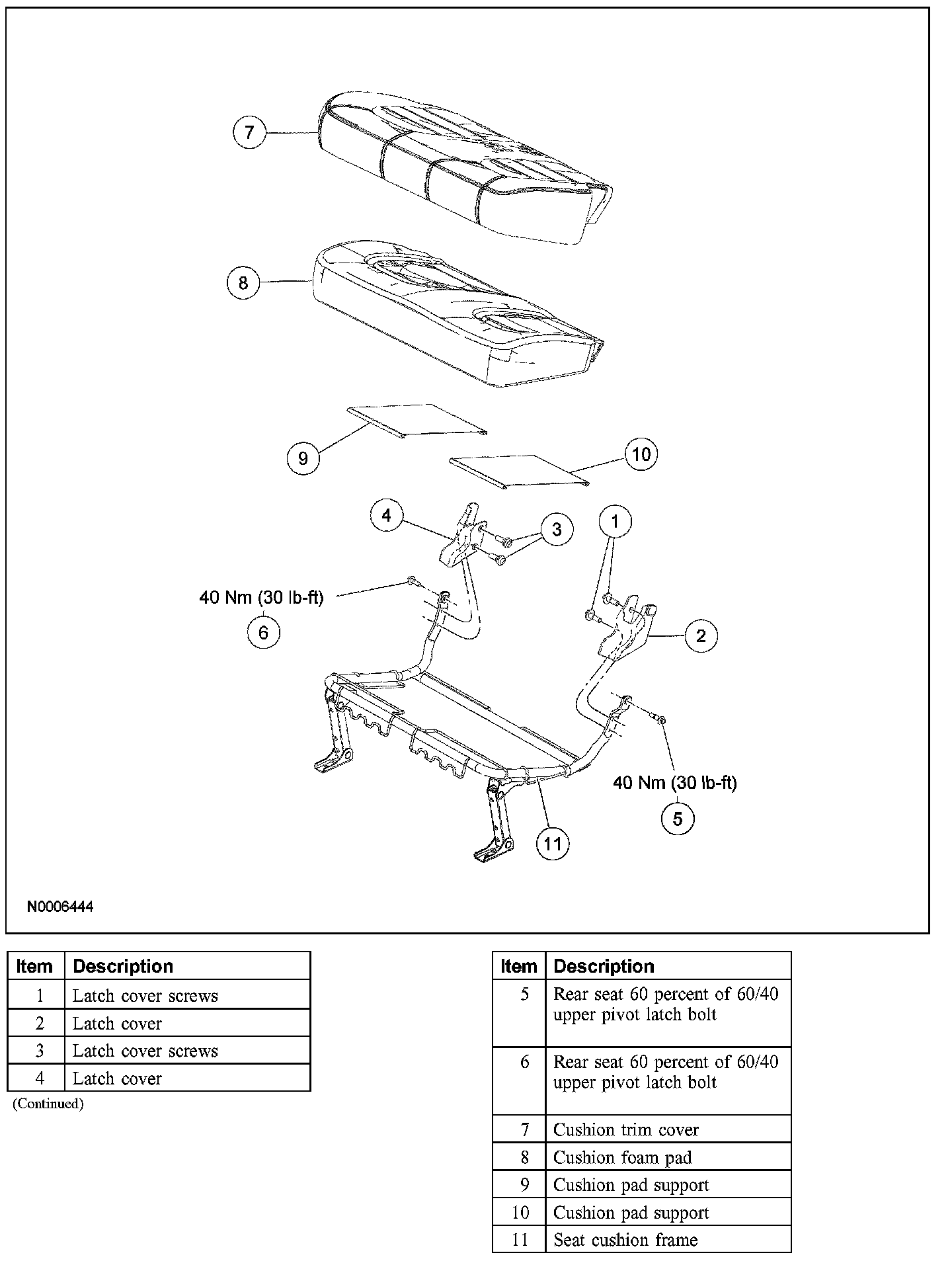

Disassembly and Assembly
1. Remove the second row, 60 percent seat.
2. Remove the second row, 60 percent backrest.

3. CAUTION: Use care when separating the seat upholstery from the hook and loop strip, or the hook and loop strip can be torn from the seat cushion foam pad.

Release the J-clips, separate the hook and loop fasteners and remove the seat cushion trim cover.

4. Remove the cushion foam pad.
5. Remove 2 cushion pad supports.
6. To assemble, reverse the disassembly procedure.
