Rear Seat Cushion - 40 Percent of 60/40 Bench, Second Row

REAR SEAT CUSHION - 40 PERCENT OF 60/40 BENCH, SECOND ROW

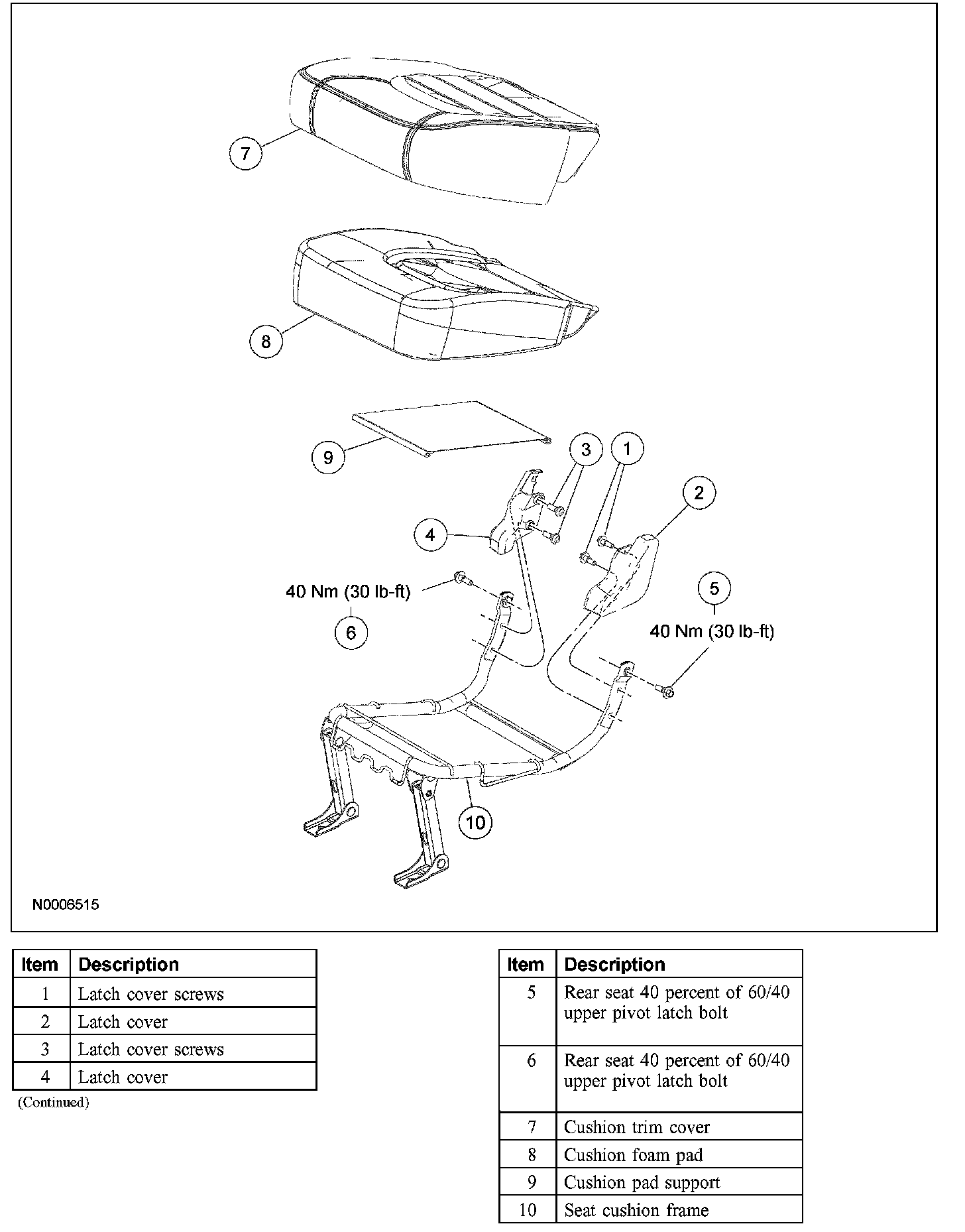

Disassembly and Assembly
1. Remove the second row, 40 percent of 60/40 bench seat.
2. Remove the second row, 40 percent of 60/40 bench seat backrest.

3. CAUTION: Use care when separating the seat upholstery from the hook and loop strip, or the hook and loop strip can be torn from the seat cushion foam pad.

Release the J-clips, separate the hook and loop fasteners and remove the seat cushion trim cover.

4. Remove the cushion foam pad.
5. Remove the cushion pad supports.
6. To assemble, reverse the disassembly procedure.
