Rear Seat Cushion - Third Row

REAR SEAT CUSHION - THIRD ROW

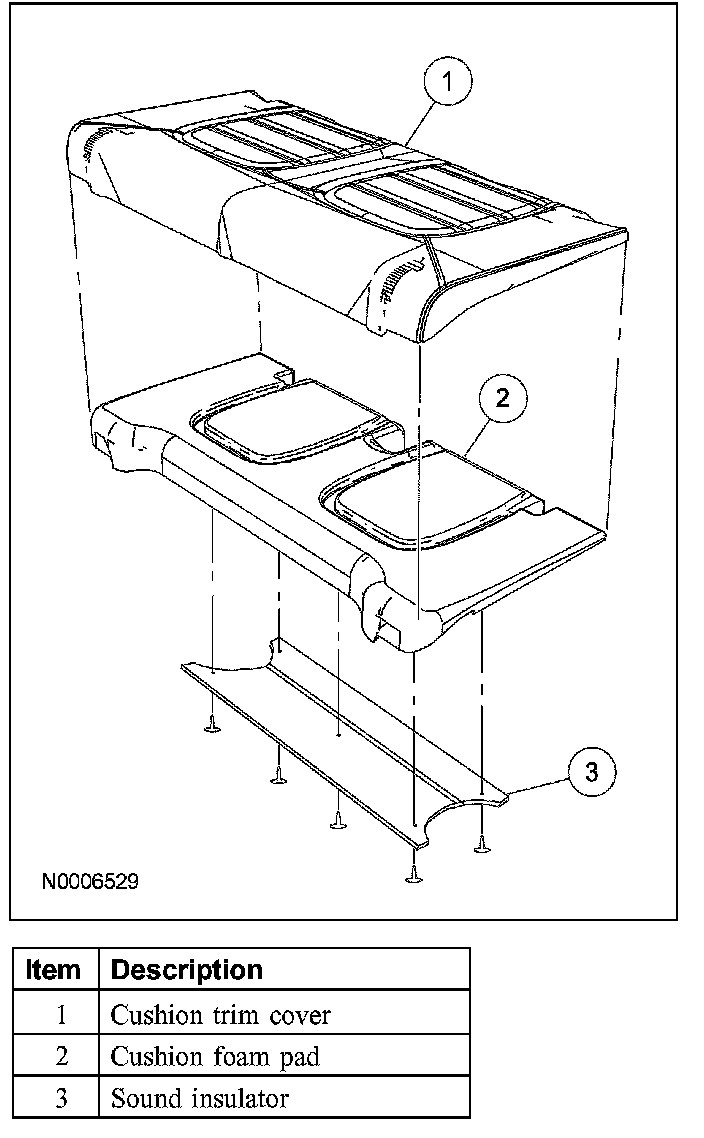

Disassembly and Assembly
1. Remove the third row cushion.

2. CAUTION: Use care when separating the seat upholstery from the hook and loop strip, or the hook and loop strip can be torn from the seat cushion foam pad.

Release the J-clips, separate the hook and loop fasteners and remove the cushion trim cover.

3. Remove the retainers and the sound insulator.
4. To assemble, reverse the disassembly procedure.
