Power Mirror Motor: Service and Repair

EXTERIOR MIRROR MOTOR

Removal and Installation

NOTE: RH shown, LH similar.

1. Remove the exterior mirror glass.
2. Remove the exterior mirror motor screws.

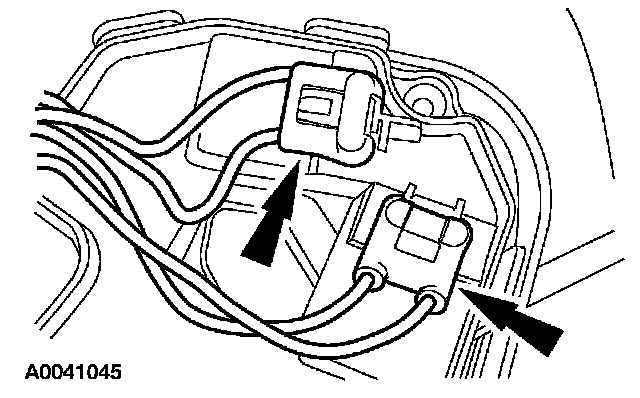

3. Disconnect the exterior mirror motor electrical connectors.
4. To install, reverse the removal procedure.
