Power Door Lock Switch: Service and Repair

DOOR LOCK CONTROL SWITCH







Removal and Installation

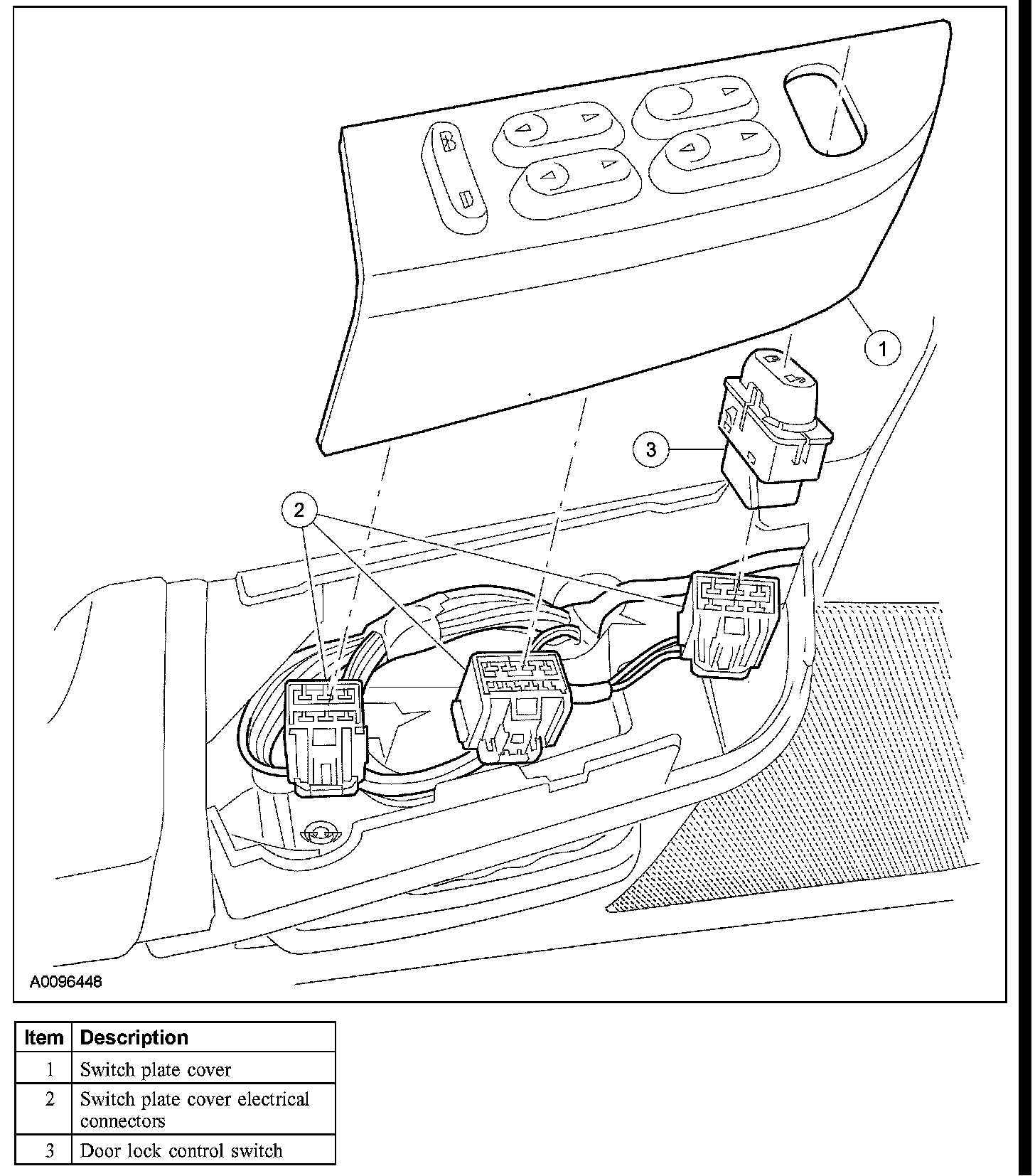

NOTE: The LH side is shown, the RH side is similar.

1. Remove the switch plate cover.
2. Disconnect the switch plate cover electrical connectors.
3. Release the locking tabs and remove the door lock control switch.
4. To install, reverse the removal procedure.
