D-Pillar Trim Panel

D-PILLAR TRIM PANEL

Removal and Installation

Vehicles with third row seating

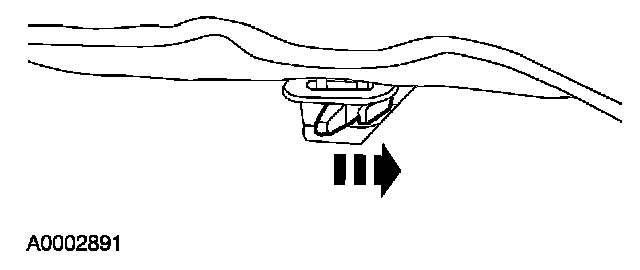

1. Release the 2 levers located at each lower outboard edge of the third row seat cushion.

All vehicles
2. Remove the D-pillar lower safety belt anchor bolt.
- To install, tighten to 40 Nm (30 lb-ft).

3. Position the liftgate opening weatherstrip aside.
4. Remove the D-pillar trim panel.
5. To install, reverse the removal procedure.
