Liftgate Trim Panel

LIFTGATE TRIM PANEL

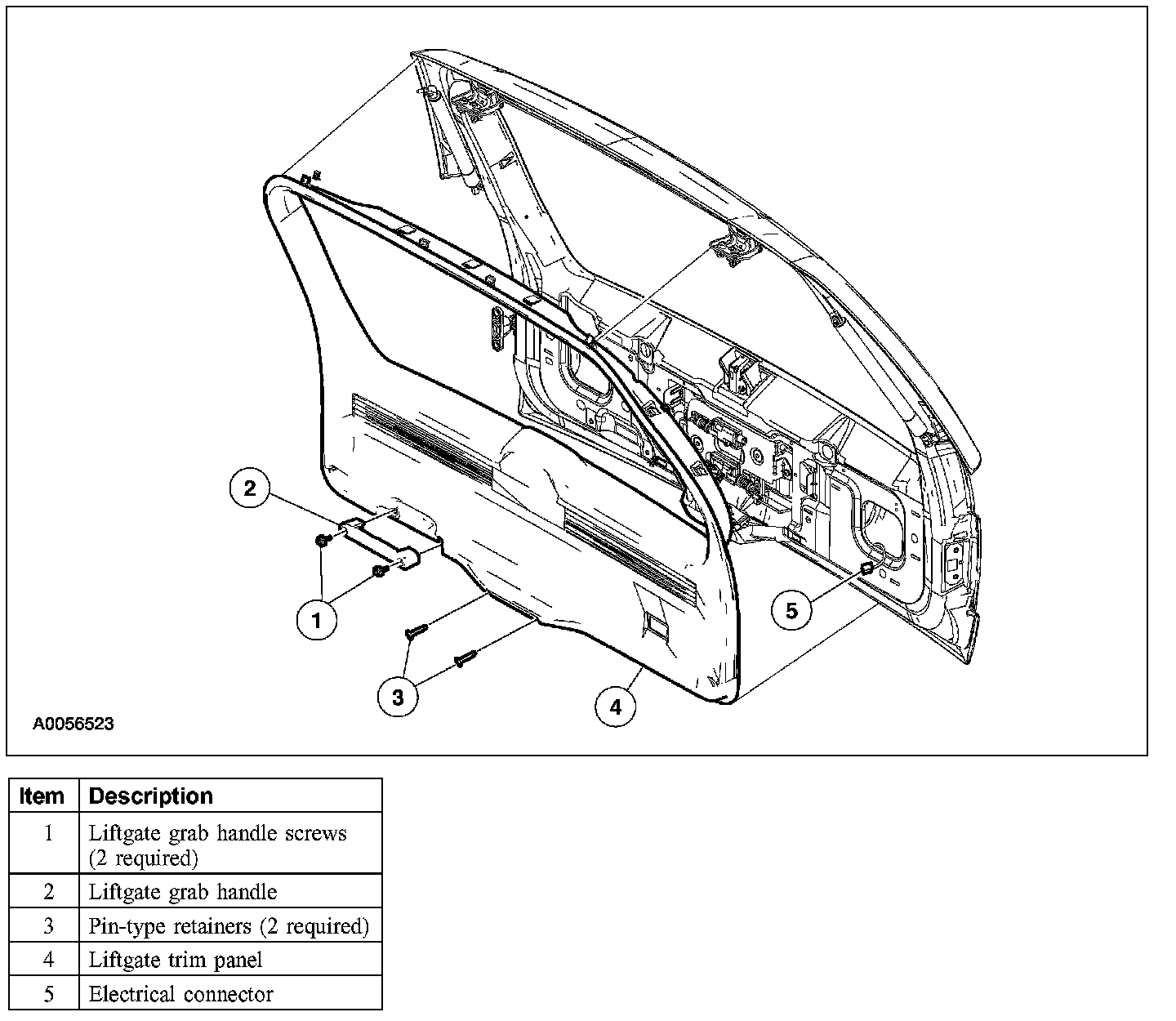

Removal and Installation
1. Remove the 2 liftgate grab handle screws.
2. Remove the liftgate grab handle.
3. Remove the 2 pin-type retainers.
4. Remove the liftgate trim panel.
5. Disconnect the liftgate trim panel electrical connector.
6. To install, reverse the removal procedure.
