Grille: Service and Repair

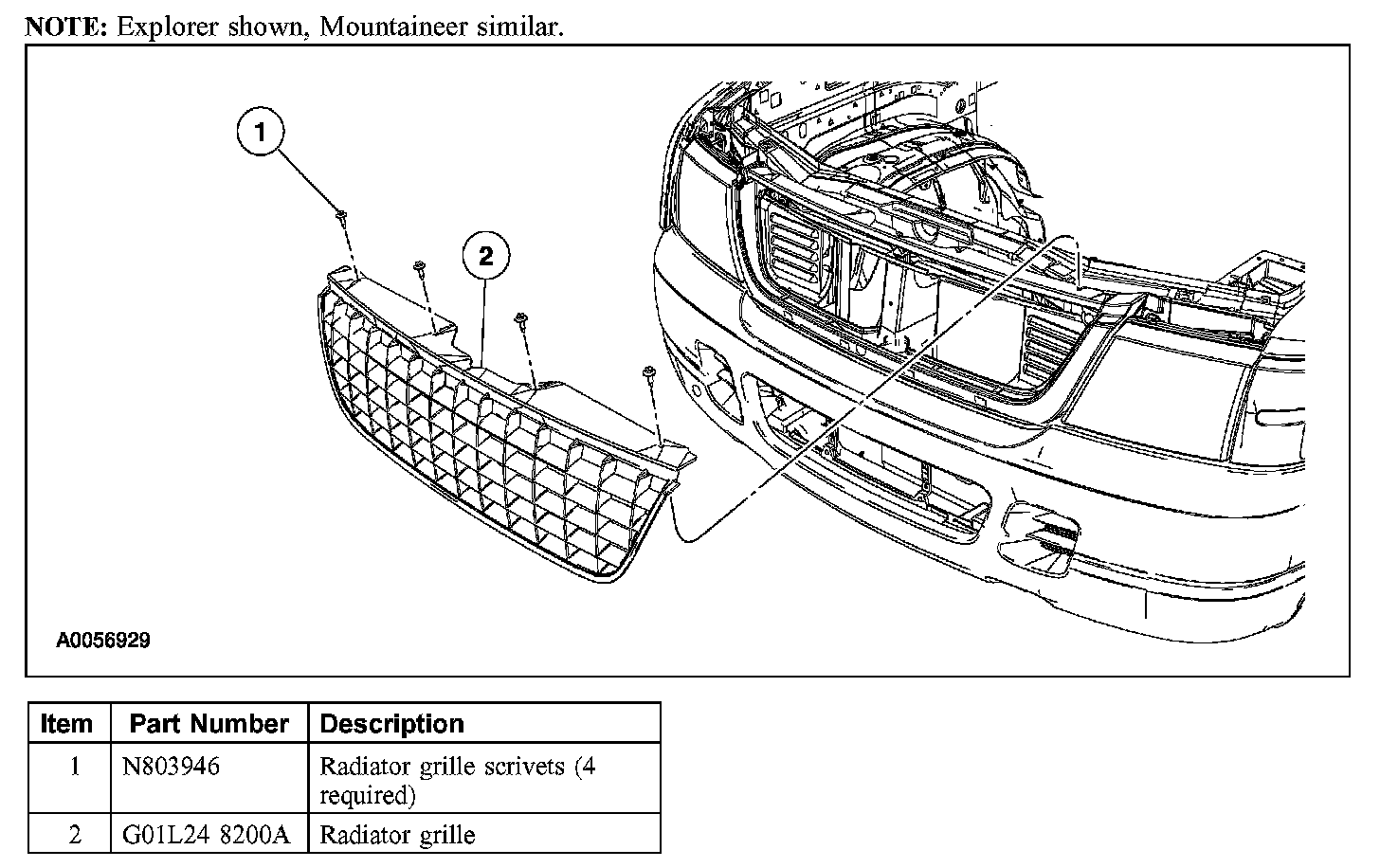

RADIATOR GRILLE







Removal and Installation
1. Remove the 4 radiator grille scrivets.
2. Lift the radiator grille upward and remove.
3. To install, reverse the removal procedure.
