Front Fender Liner: Service and Repair
FENDER SPLASH SHIELDFender And Fender Splash Shield (Part 1):
Fender And Fender Splash Shield (Part 2):
Exploded View
Removal and Installation
1. If equipped with color-keyed running boards, remove the running board.

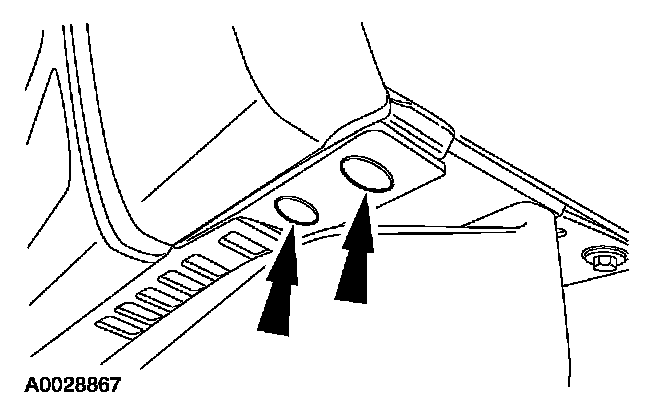

2. Remove the lower moulding pushpins.
3. Remove the 14 splash shield pin-type retainers.
4. Remove the 6 splash shield scrivets.
5. Remove the front splash shield.
6. Remove the front fender rear splash shield.
7. To install, reverse the removal procedure.
