Glass, Frames and Mechanisms - Exploded View

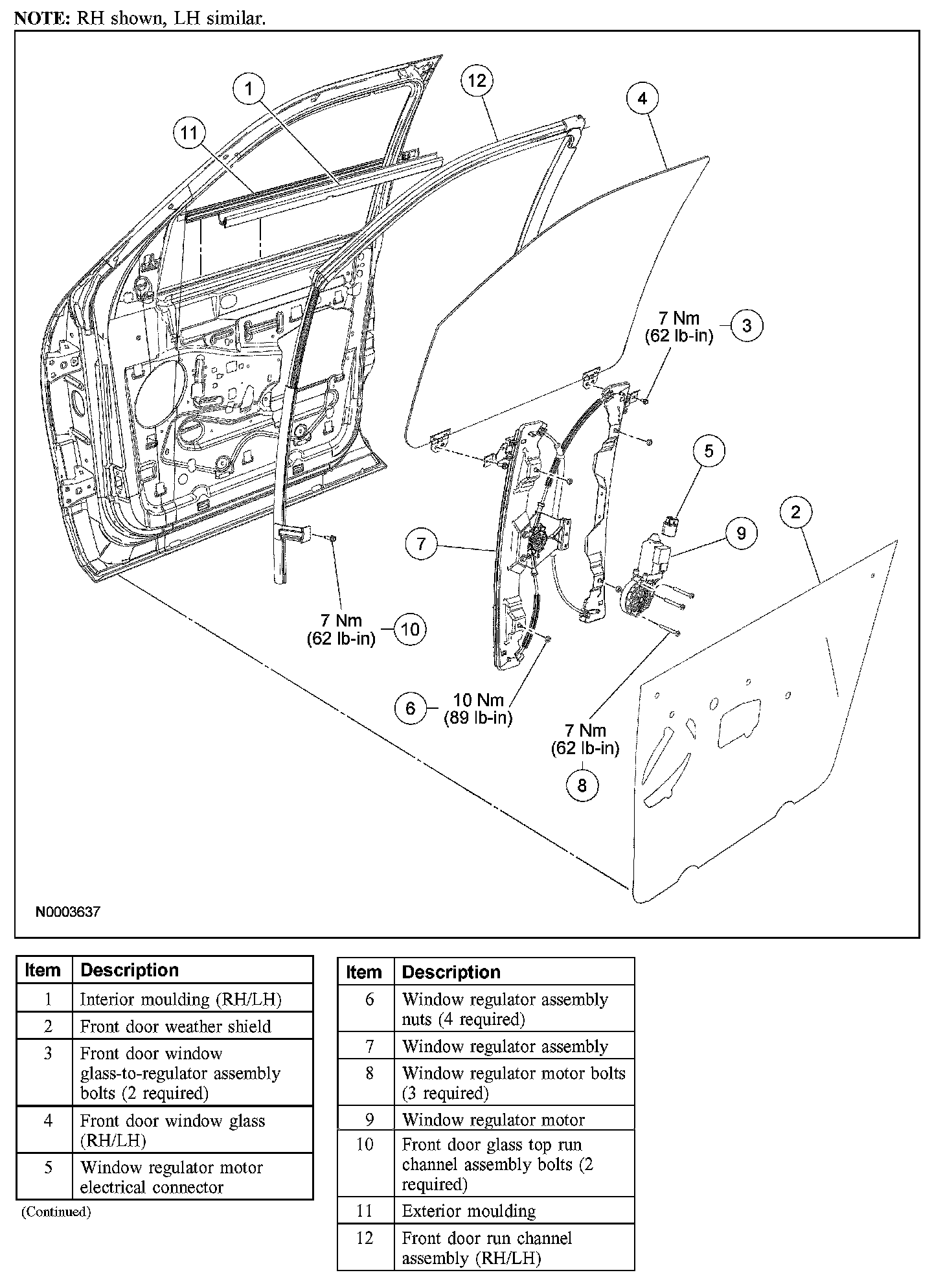

FRONT DOOR GLASS, FRAMES AND MECHANISMS - EXPLODED VIEW

Removal and Installation







1. For additional information, refer to the procedures.
