Front Door Panel: Service and Repair

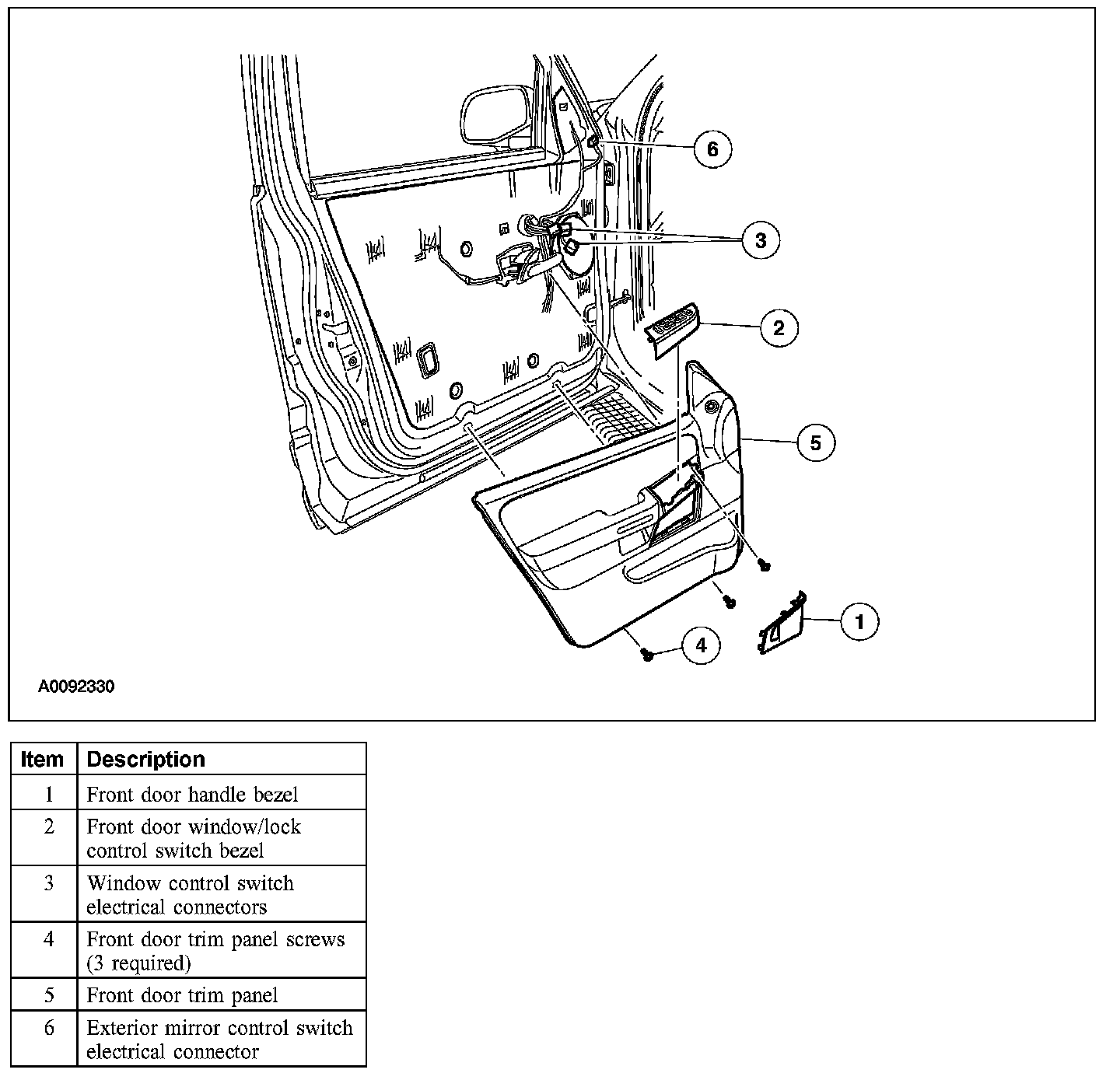

FRONT DOOR TRIM PANEL







Removal and Installation
1. Remove the front door handle bezel.
2. Remove the front door window/lock control switch bezel.
3. Disconnect the window/lock control switch electrical connectors.
4. Remove the 3 front door trim panel screws.

5. CAUTION: To avoid damaging the trim panel, do not pull directly outward to carry out this step.

Lift the door trim panel by pulling directly upward on the armrest to disengage the panel clips.

6. Disconnect the exterior mirror control switch electrical connector.
7. To install, reverse the removal procedure.
