Auxiliary Step / Running Board: Service and Repair

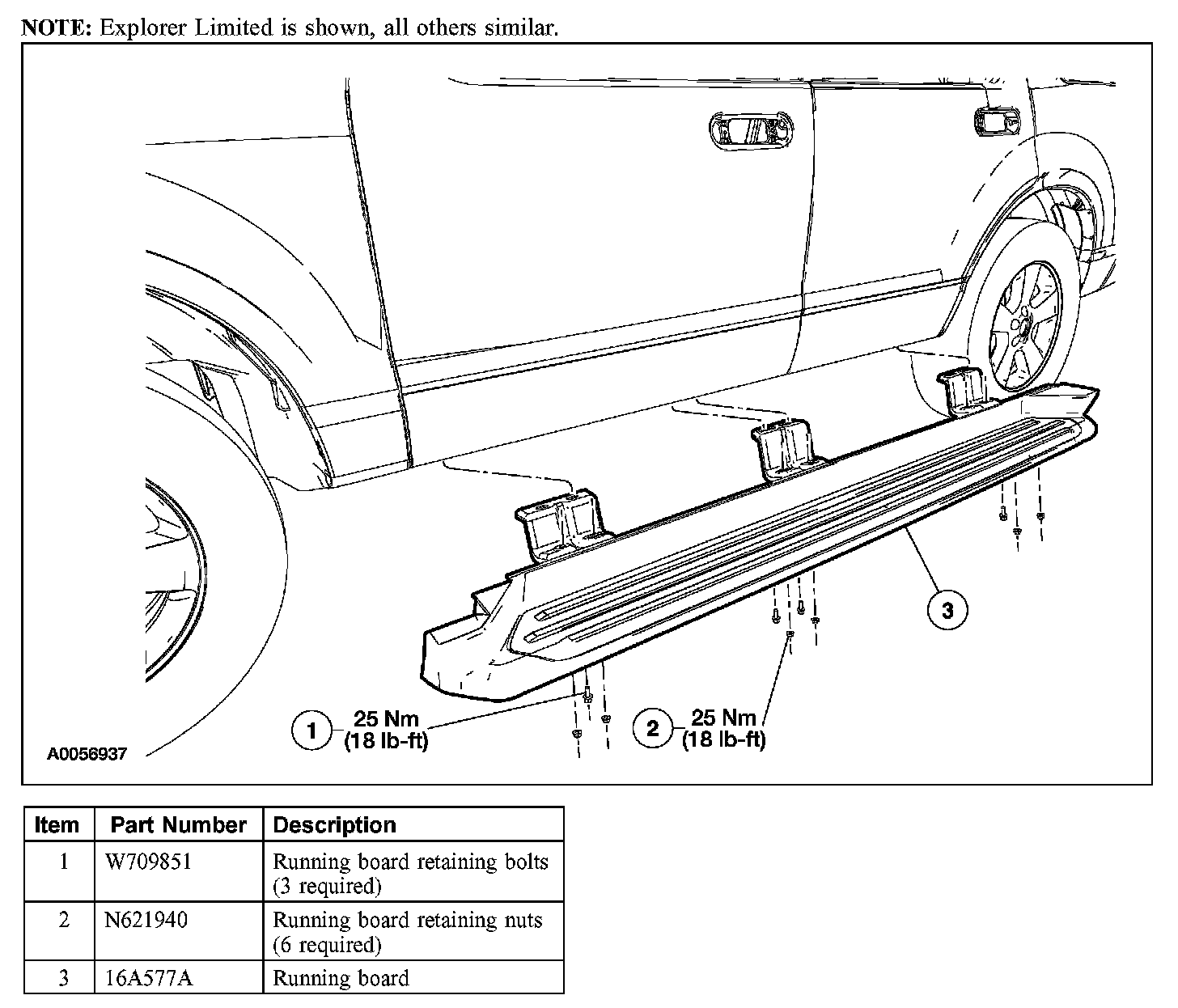

RUNNING BOARD







Removal and Installation
1. Remove the 6 running board retaining nuts.
- To install, tighten to 25 Nm (18 lb-ft).

2. Remove the 3 running board retaining bolts.
- To install, tighten to 25 Nm (18 lb-ft).

3. Remove the running board.
4. To install, reverse the removal procedure.
