Parking Assist Switch: Service and Repair

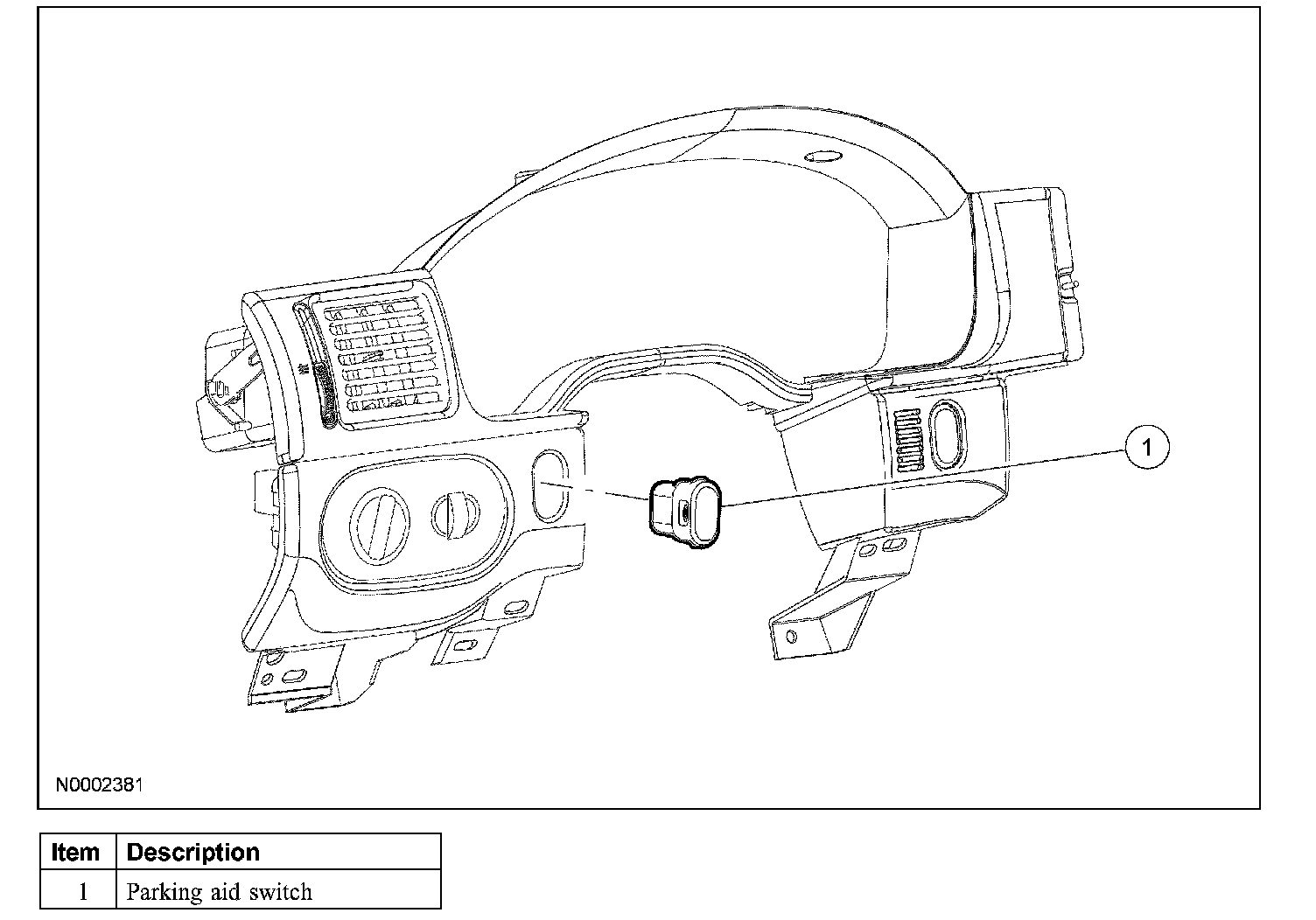

PARKING AID SWITCH







Removal and Installation
1. Remove the instrument cluster finish panel.
2. Press the retaining tabs and remove the parking aid switch.
3. To install, reverse the removal procedure.
