Door Speaker
DOOR SPEAKER
Removal and Installation
1. Remove the door trim panel.

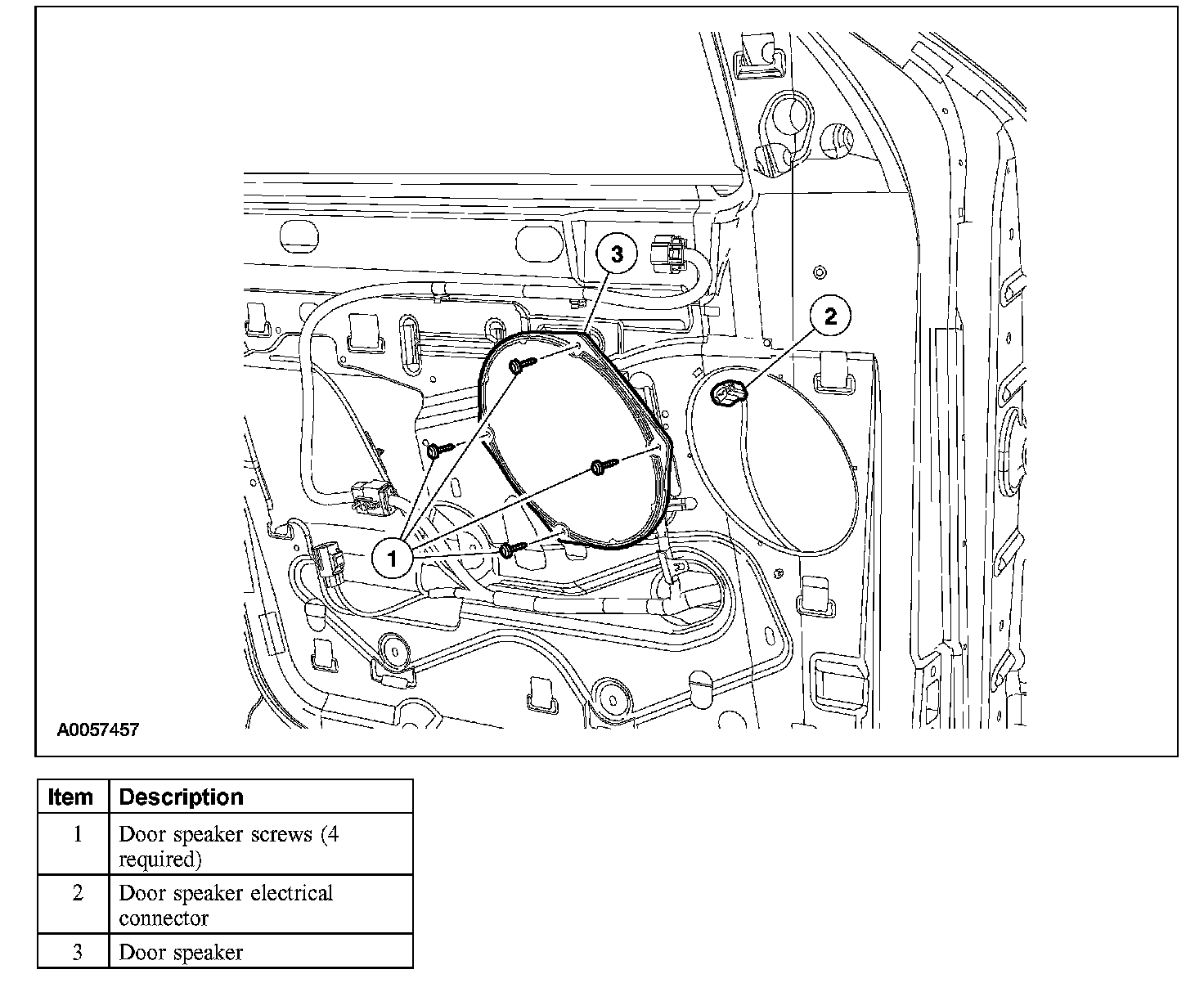

2. Remove the 4 door speaker screws and the door speaker.
- Disconnect the door speaker electrical connector.
3. To install, reverse the removal procedure.
