Speaker Enclosure

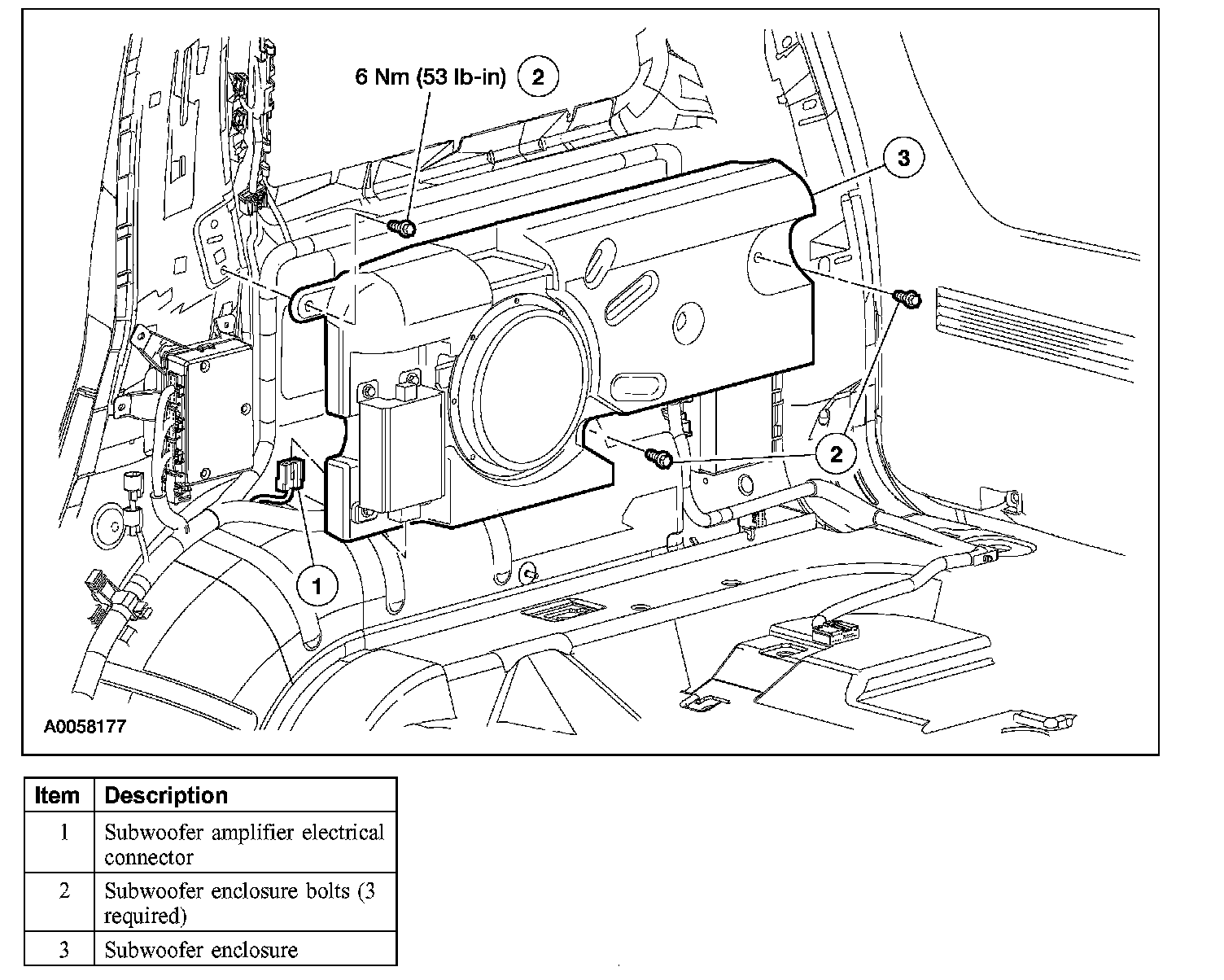

SPEAKER ENCLOSURE







Removal and Installation
1. Disconnect the battery.
2. Remove the RH rear quarter trim panel.
3. Disconnect the subwoofer amplifier electrical connector.
4. Remove the 3 subwoofer enclosure bolts and the subwoofer enclosure.
- To install, tighten to 6 Nm (53 lb-in).

5. To install, reverse the removal procedure.
