Amplifier: Service and Repair

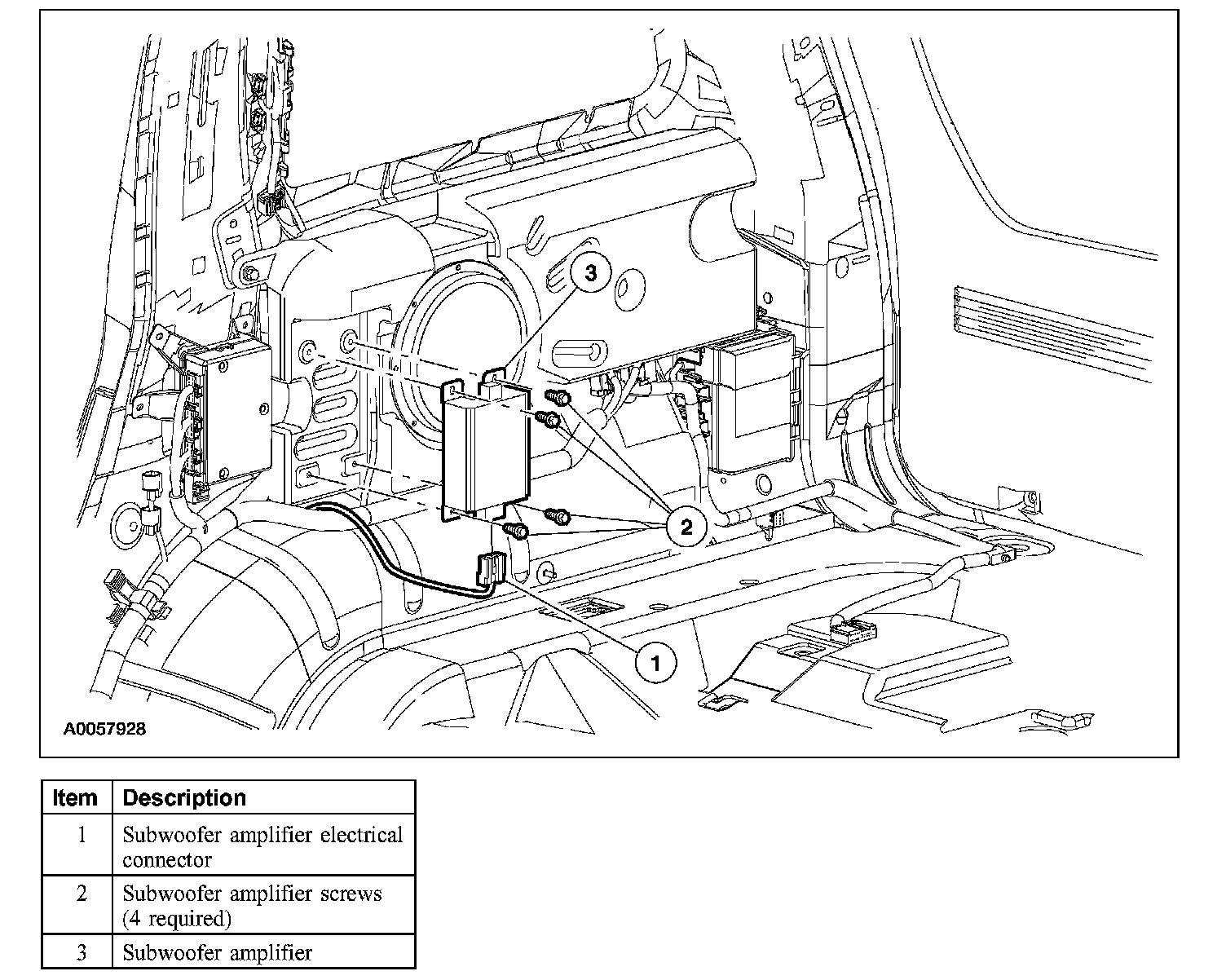

SUBWOOFER AMPLIFIER







Removal and Installation
1. Disconnect the battery.
2. Remove the RH rear quarter trim panel.
3. Disconnect the subwoofer amplifier electrical connector.
4. Remove the 4 screws and the subwoofer amplifier.
5. To install, reverse the removal procedure.
