Parking Assist Control Module: Service and Repair

PARKING AID MODULE







Removal and Installation

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

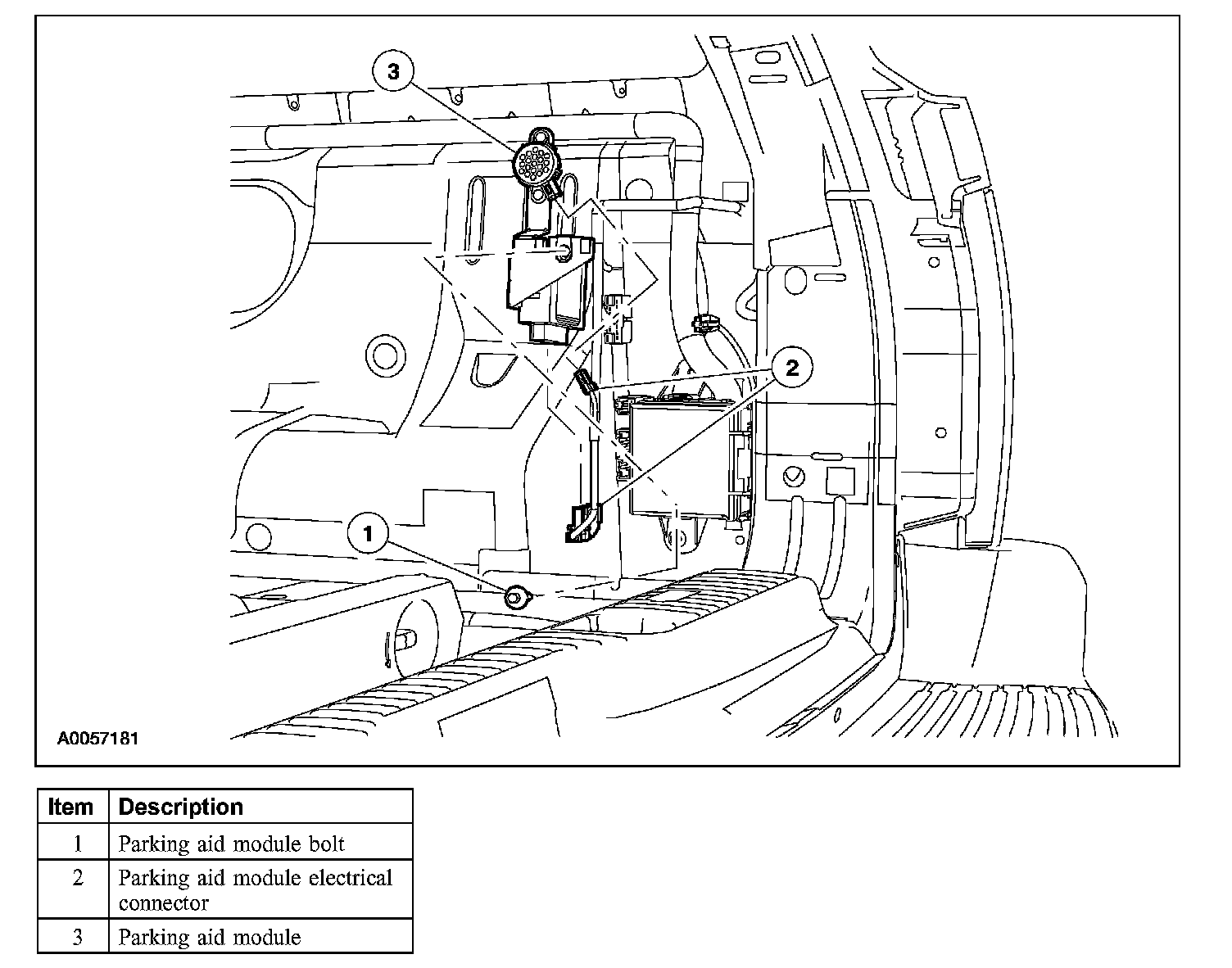

1. Remove the RH quarter trim panel.
2. Disconnect the parking aid module electrical connector
3. Remove the bolt and the parking aid module.
4. To install, reverse the removal procedure.
