Antenna Cable: Service and Repair

ANTENNA LEAD-IN CABLE







Removal and Installation
1. Remove the audio unit.
2. Lower the glove compartment door.

3. NOTE: Release the pin-type retainers.

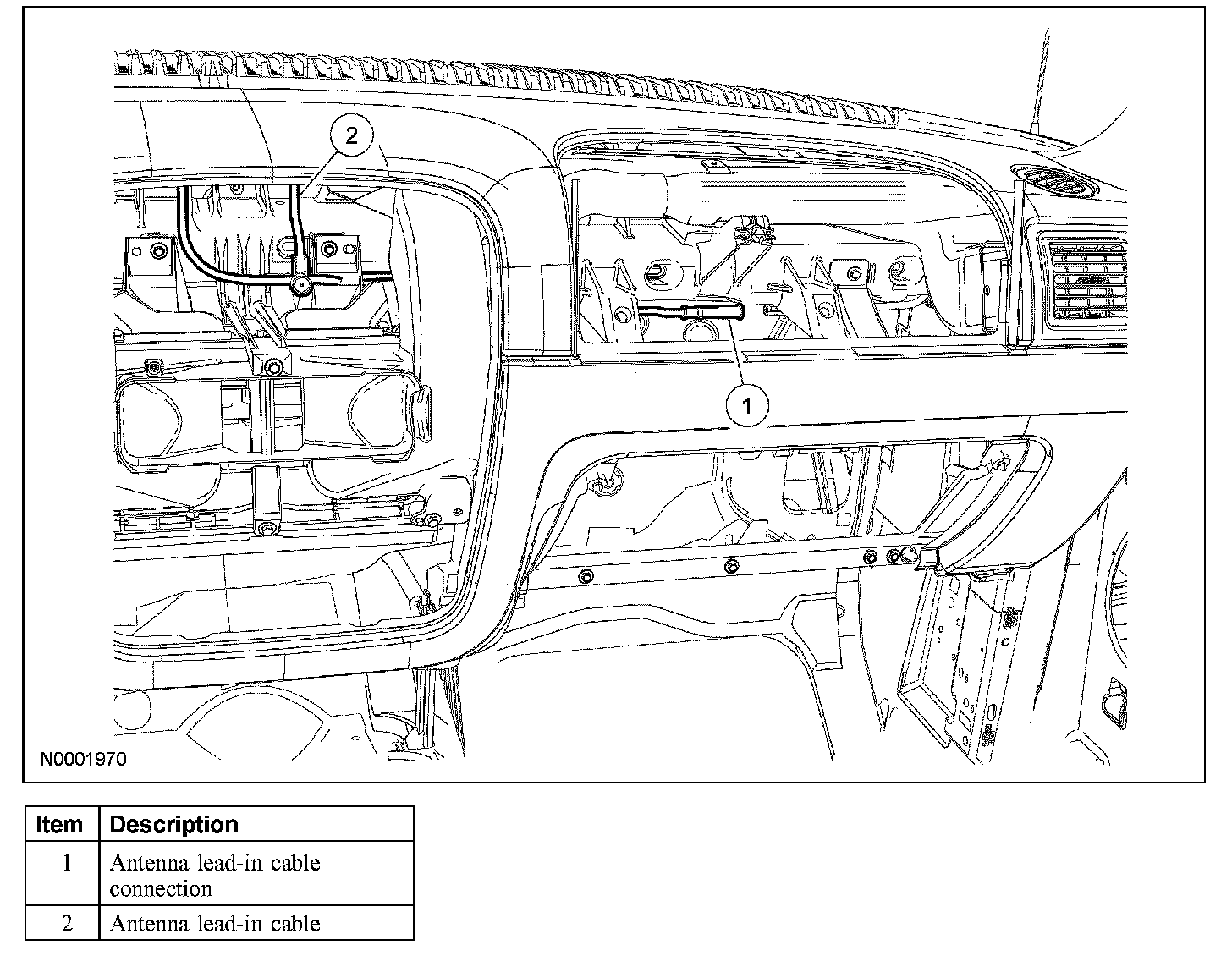

Disconnect the antenna lead-in cable connection and remove the antenna lead-in cable.

4. To install, reverse the removal procedure.
