Vacuum Reservoir HVAC: Service and Repair

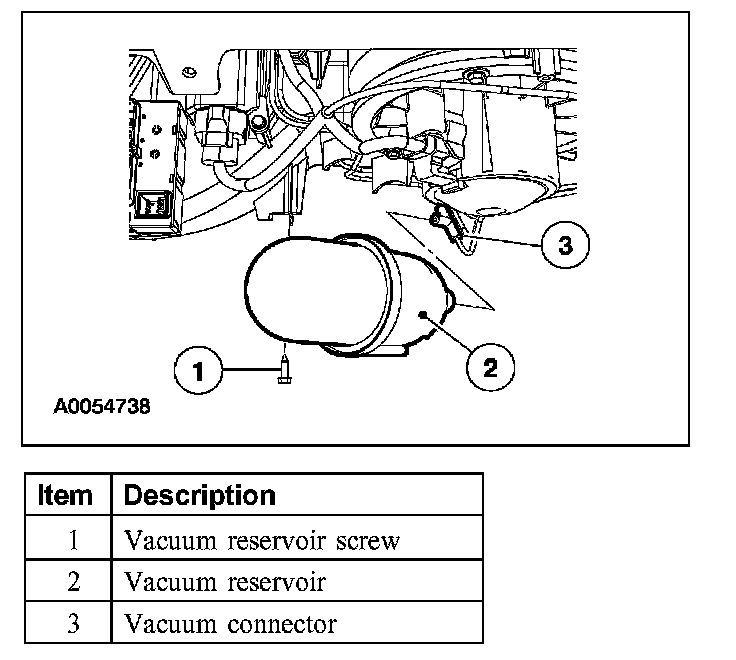

VACUUM RESERVOIR







Removal and Installation
1. Remove the vacuum reservoir screw.
2. Remove the vacuum reservoir.
3. Disconnect the vacuum connector.
4. To install, reverse the removal procedure.
