Auxiliary Heater Outlet and Inlet Line - Rear

AUXILIARY HEATER OUTLET AND INLET LINE - REAR

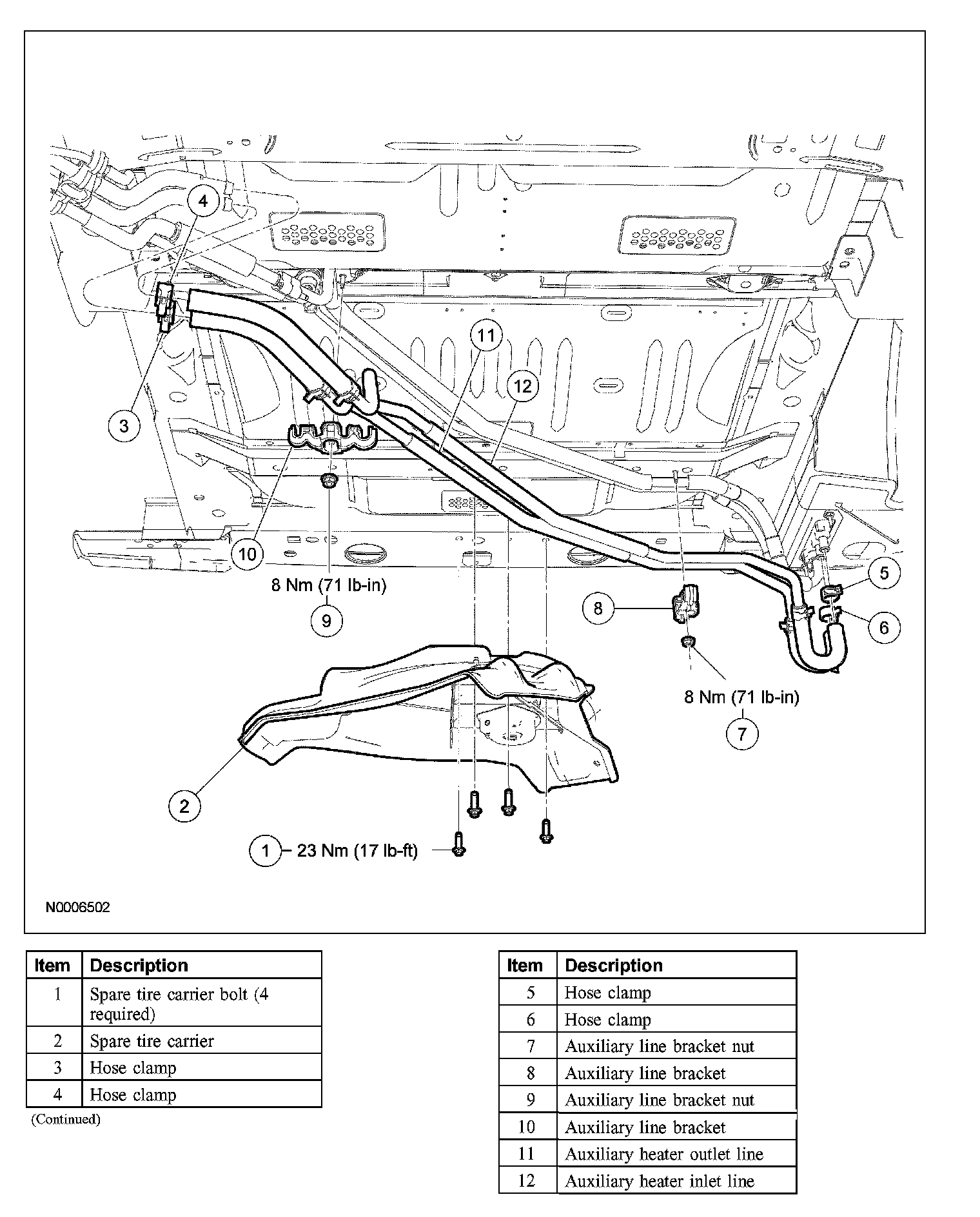

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Drain the engine coolant.
3. Remove the spare tire.
4. Remove the 4 spare tire carrier bolts.
- To install, tighten to 23 Nm (17 lb-ft).

5. Remove the spare tire carrier.
6. Remove the 4 hose clamps.
7. Remove the 2 auxiliary line bracket nuts.
- To install, tighten to 8 Nm (71 lb-in).

8. Remove the 2 auxiliary line brackets.
9. Remove the auxiliary heater outlet line.
10. Remove the auxiliary heater inlet line.
11. To install, reverse the removal procedure.
- Clean and lubricate the coolant hoses with plain water only, if needed.

12. Fill the engine coolant level.
