Front

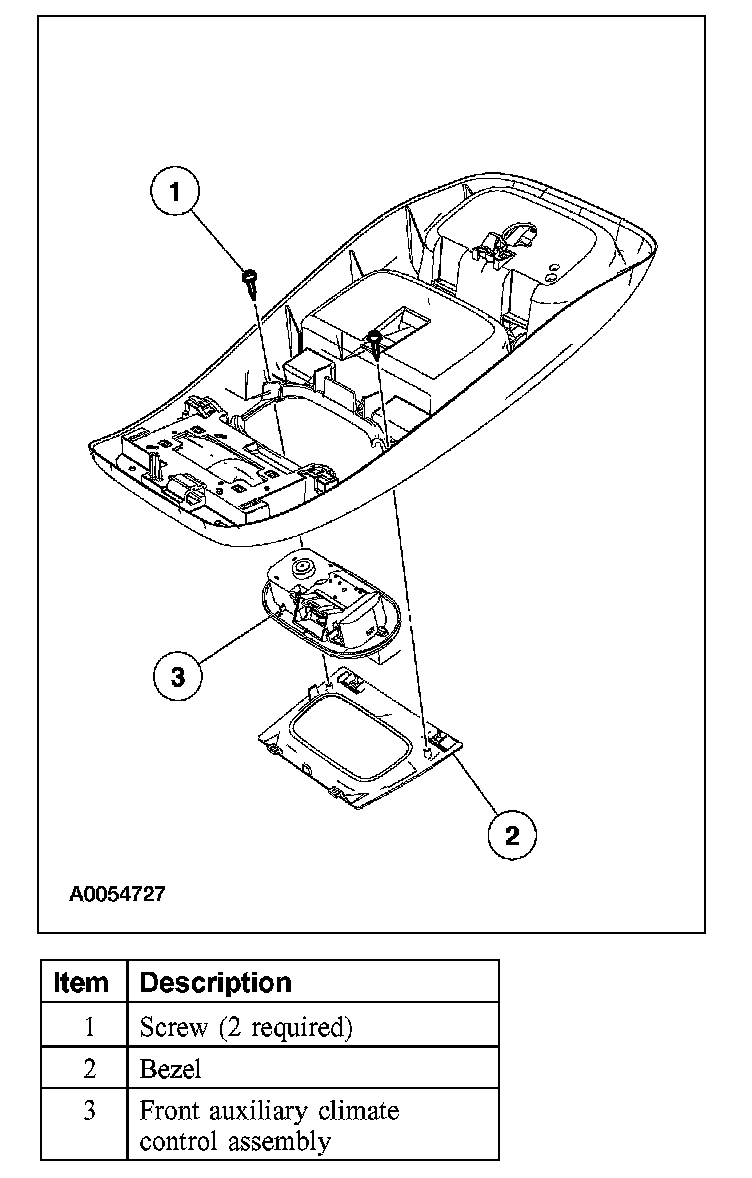

AUXILIARY CLIMATE CONTROL ASSEMBLY - FRONT







Removal and Installation
1. Remove the overhead console.
2. Remove the 2 screws.
3. Remove the bezel.
4. Remove the front auxiliary climate control assembly.
5. To install, reverse the removal procedure.
