Auxiliary Climate Control

AUXILIARY BLOWER MOTOR RESISTOR

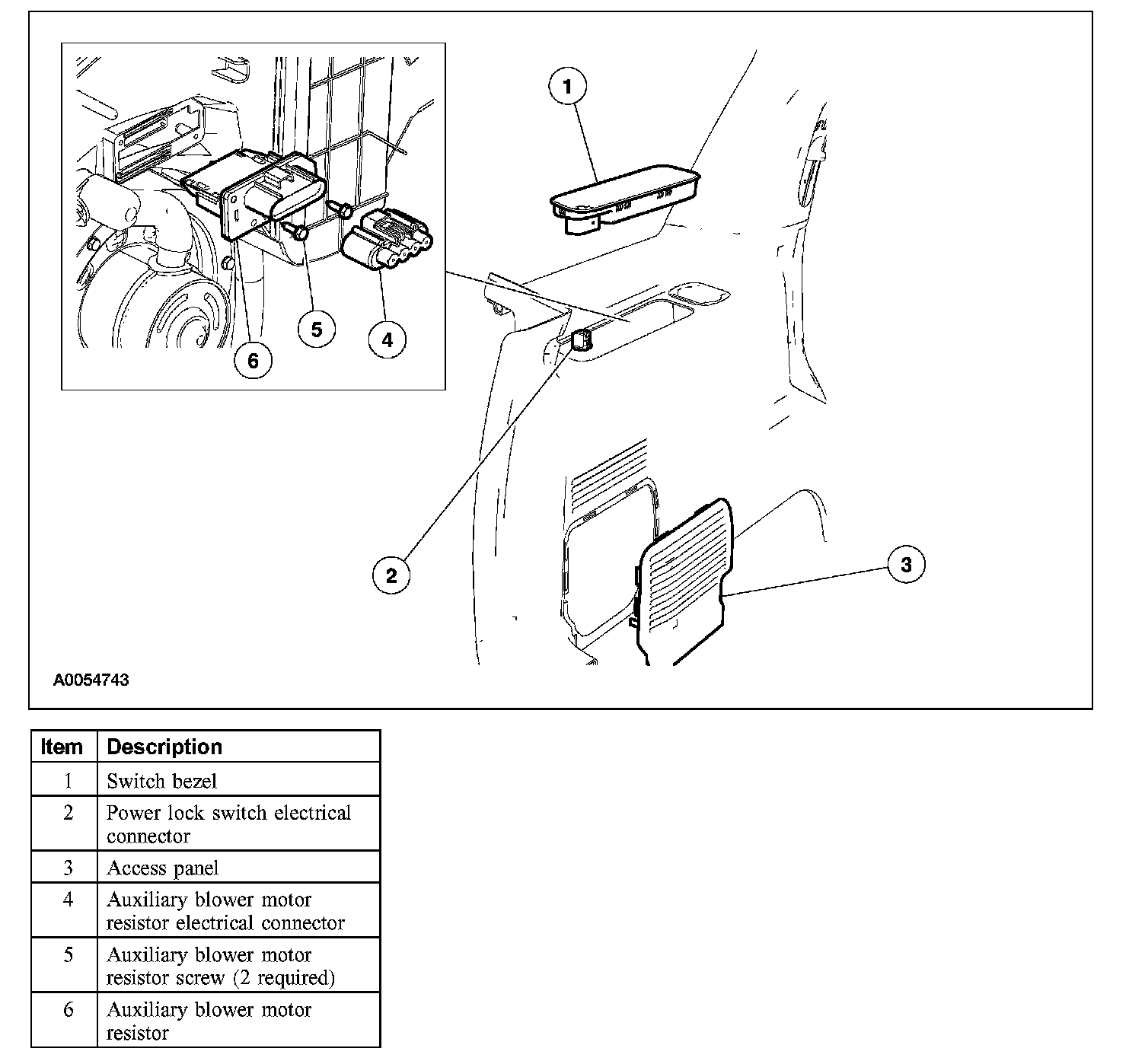

Removal and Installation
1. Remove the switch bezel.
2. Disconnect the power lock switch electrical connector.
3. Remove the access panel.
4. Disconnect the auxiliary blower motor resistor electrical connector.
5. Remove the 2 auxiliary blower motor resistor screws.
6. Remove the auxiliary blower motor resistor.
7. To install, reverse the removal procedure.
