Control Components

BLOWER MOTOR RESISTOR - FRONT







Removal and Installation

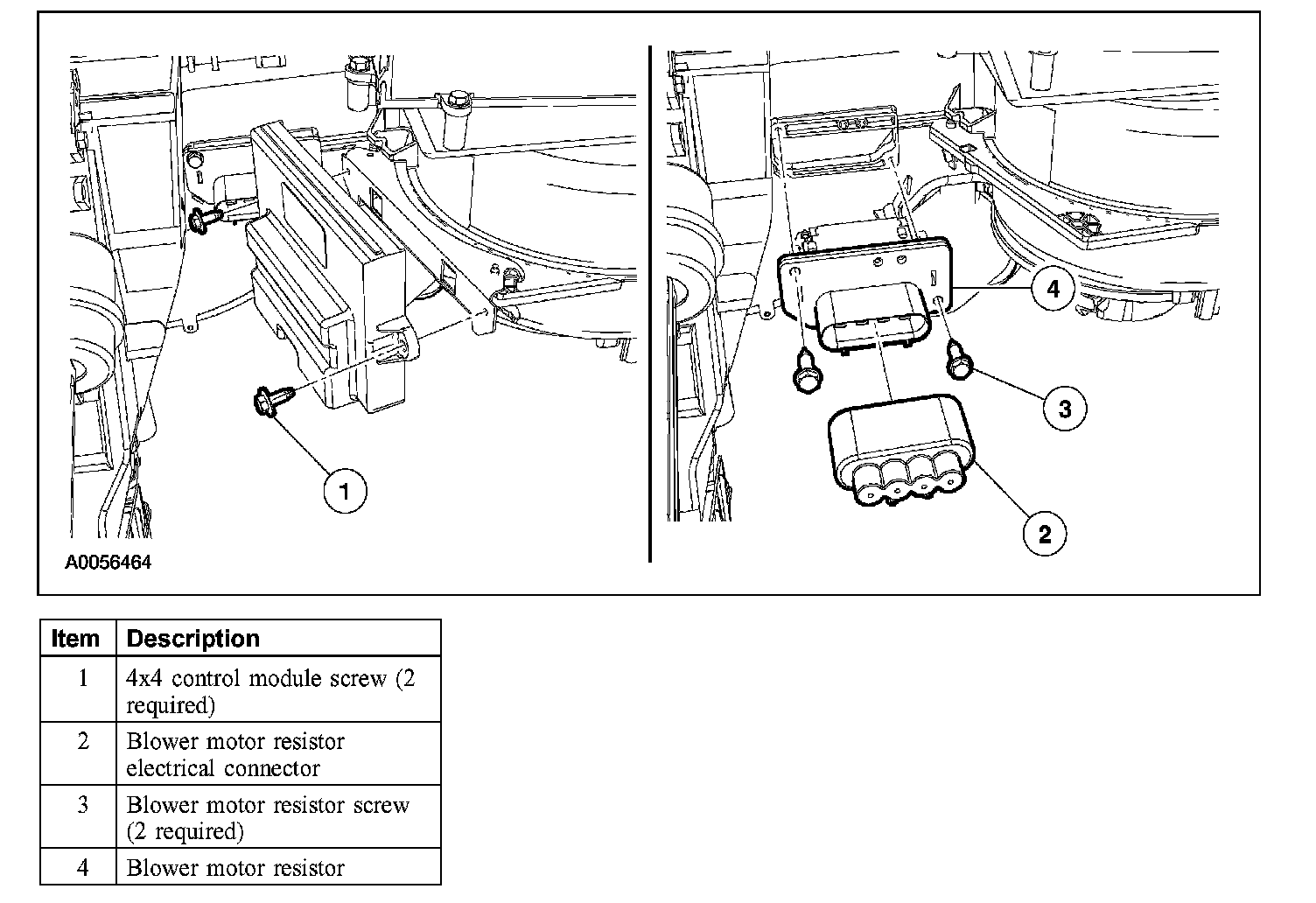

1. Remove the 2 4x4 control module screws.
2. Disconnect the blower motor resistor electrical connector.
3. Remove the 2 blower motor resistor screws.
4. Remove the blower motor resistor.
5. To install, reverse the removal procedure.
