Air Register: Service and Repair

CENTER REGISTERS







Removal and Installation

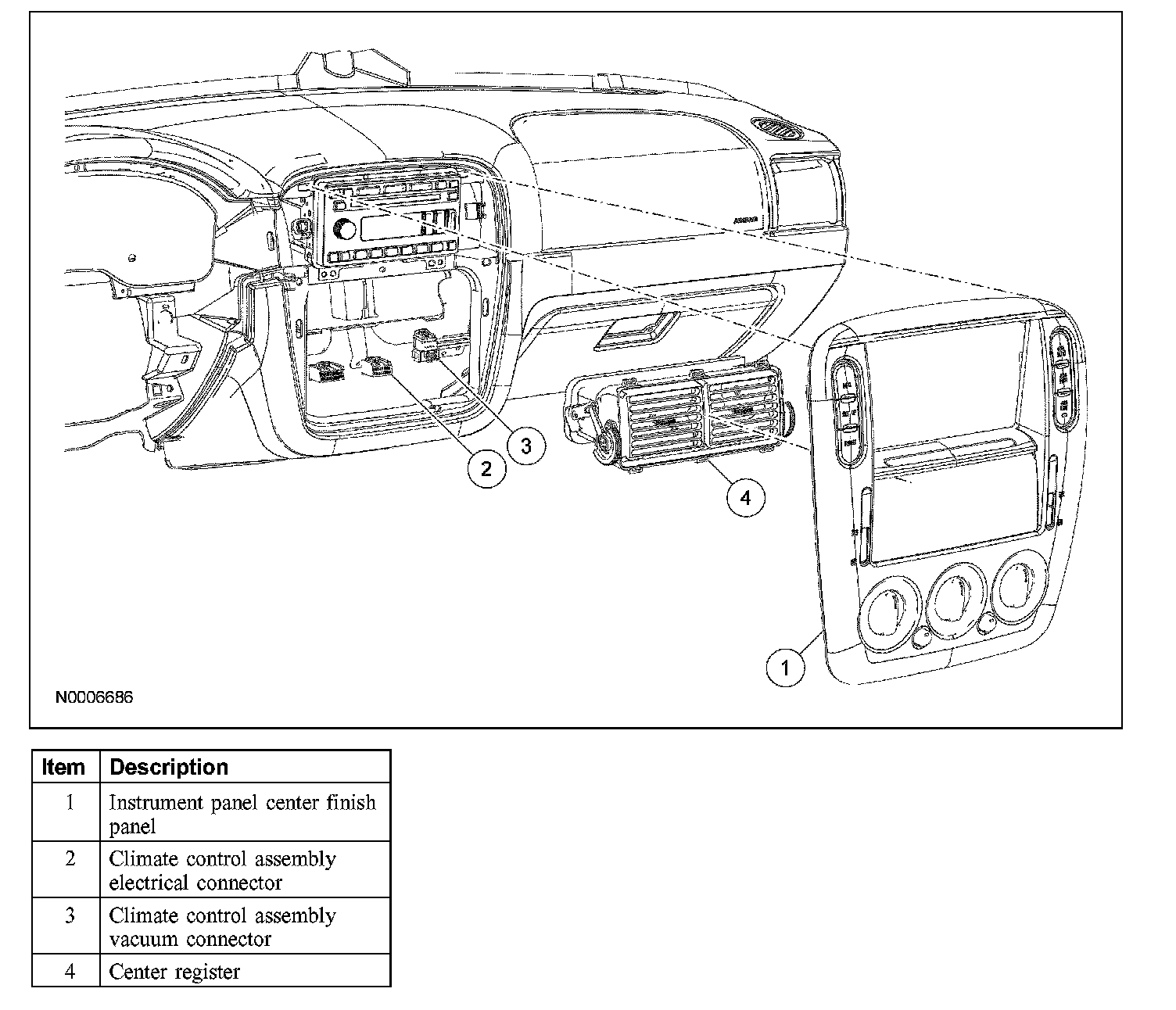

1. Remove the instrument panel center finish panel.
2. Disconnect the climate control assembly electrical connector and climate control assembly vacuum connector.

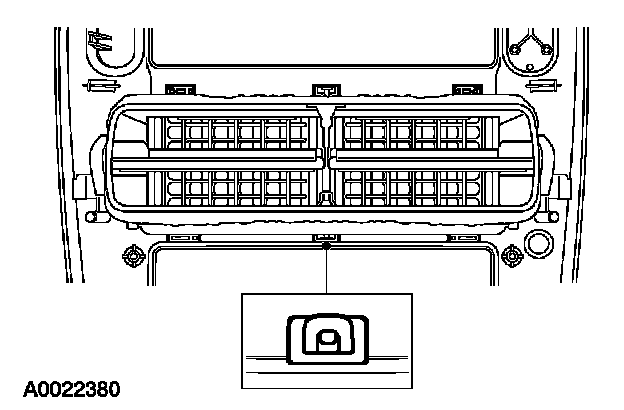

3. Disengage the retaining tabs and remove the center register.
4. To install, reverse the removal procedure.

DRIVER SIDE REGISTER







Removal and Installation

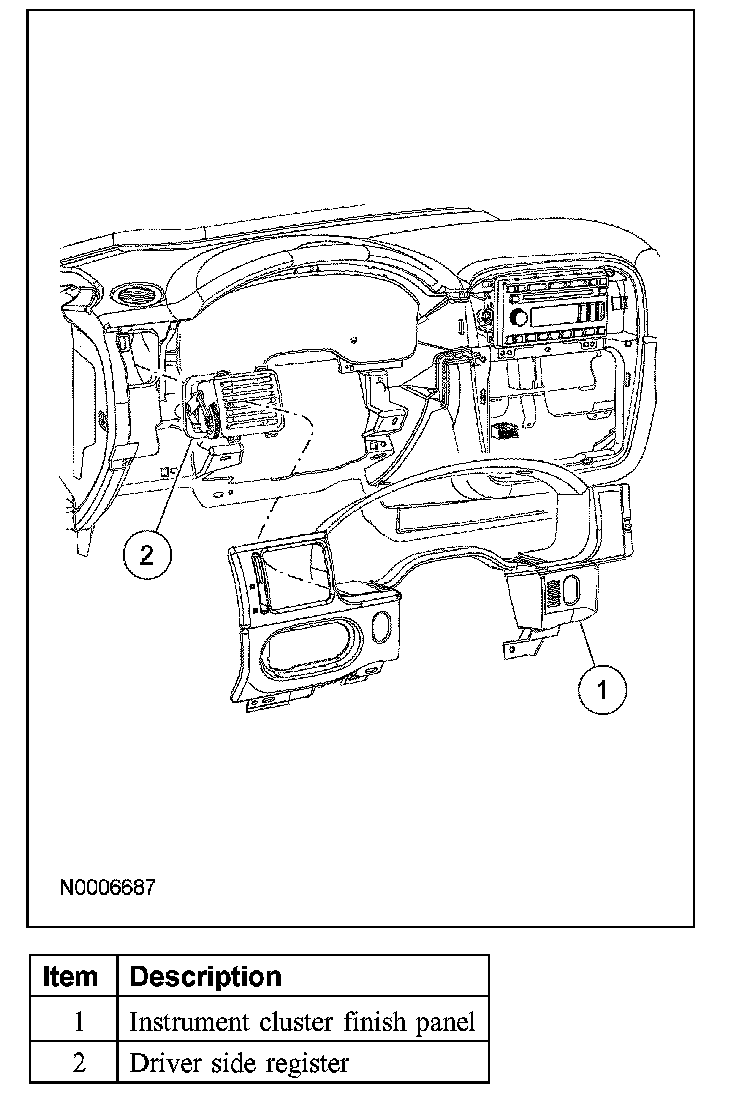

1. Remove the instrument cluster finish panel.

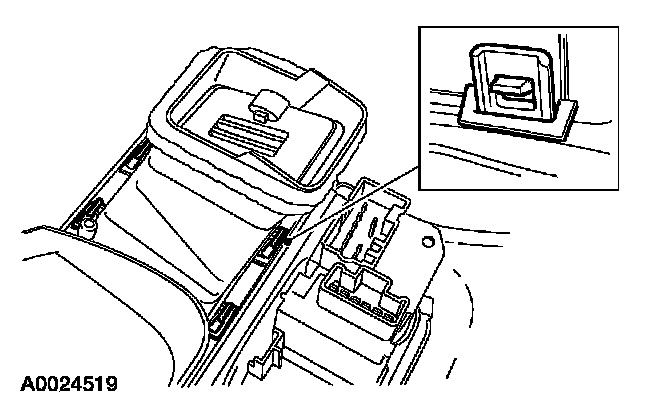

2. Disengage the retaining tabs and remove the driver side register.
3. To install, reverse the removal procedure.

PASSENGER SIDE REGISTER







Removal and Installation

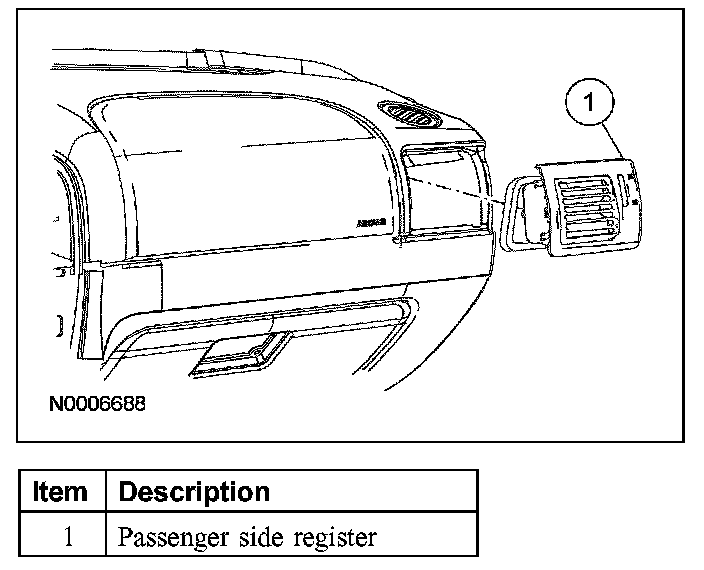

1. Remove the passenger side register.
2. To install, reverse the removal procedure.
