LH

TEMPERATURE BLEND DOOR ACTUATOR - LH







Removal and Installation
1. Remove the instrument panel. Refer to: Body and Frame, Interior Moulding/Trim, Dashboard/Instrument Panel, Service and Repair, Removal and Installation, Removal and Installation

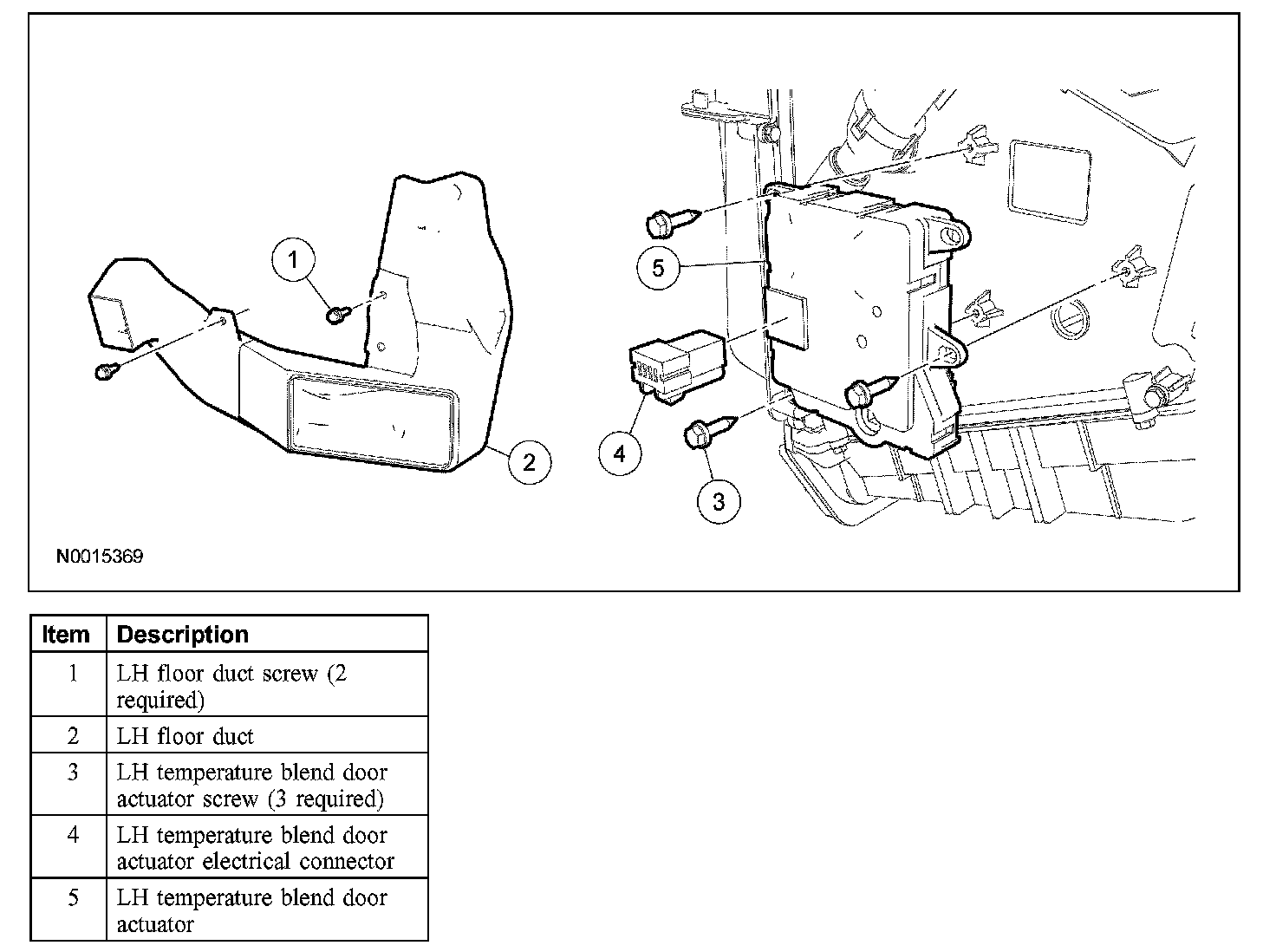

2. Remove the 2 LH floor duct screws.
3. Remove the LH floor duct.
4. Remove the 3 LH temperature blend door actuator screws
5. Disconnect the LH temperature blend door actuator electrical connector.
6. Remove the LH temperature blend door actuator.
7. To install, reverse the removal procedure.
