Air Inlet Door

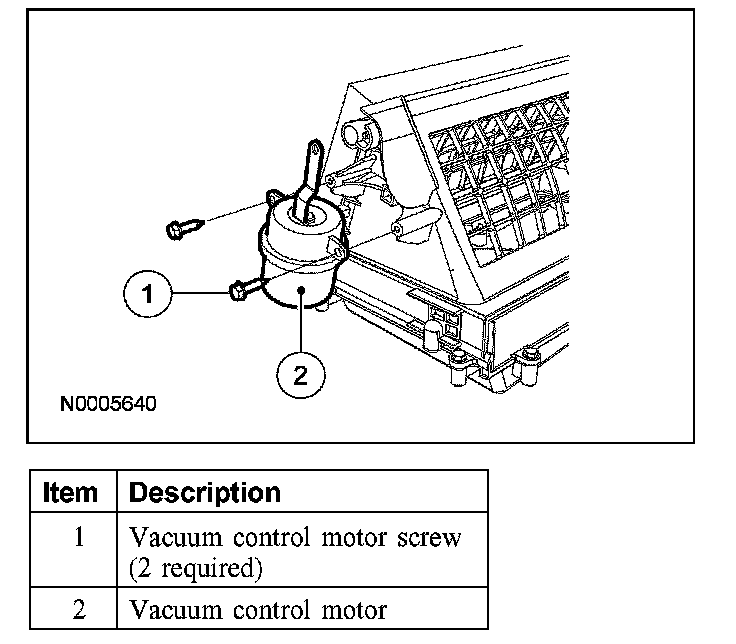

VACUUM CONTROL MOTOR - AIR INLET DOOR







Removal and Installation
1. Remove the air inlet duct.
2. Remove the 2 vacuum control motor screws.
3. Rotate the vacuum control motor until it clears the retaining arm and remove the vacuum control motor.
4. To install, reverse the removal procedure.
