Defroster Door

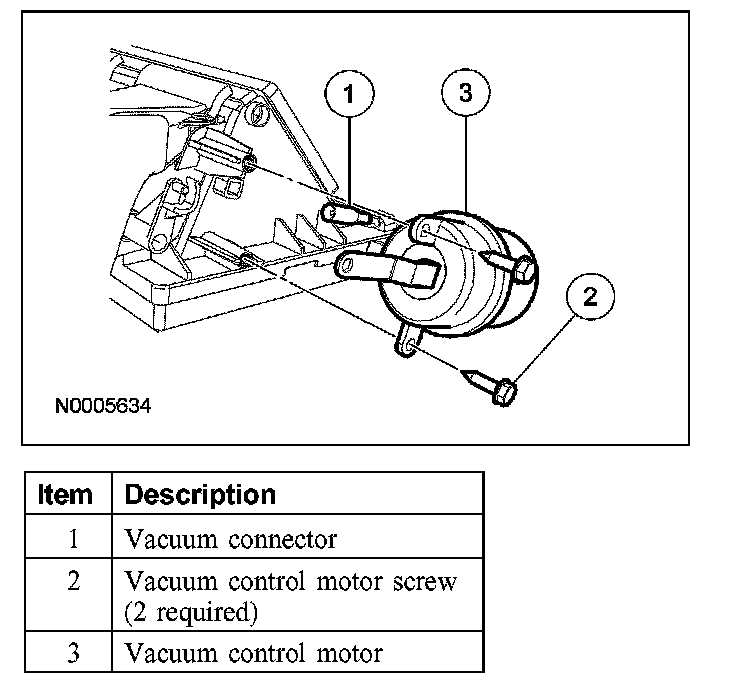

VACUUM CONTROL MOTOR - DEFROSTER DOOR







Removal and Installation
1. Remove the plenum chamber.
2. Disconnect the vacuum connector.
3. Remove the 2 vacuum control motor screws.
4. Rotate the vacuum control motor until it clears the retaining arm and remove the vacuum control motor.
5. To install, reverse the removal procedure.
