Panel Door

VACUUM CONTROL MOTOR - PANEL DOOR







Removal and Installation
1. Lower the glove compartment door.

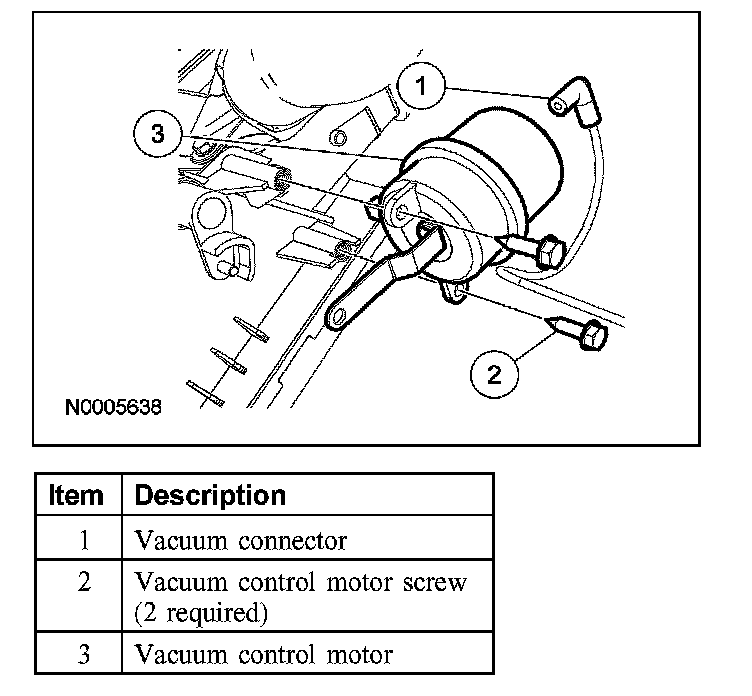

2. Disconnect the vacuum connector.
3. Remove the 2 vacuum control motor screws.







4. Rotate the vacuum control motor until it clears the retaining arm and remove the vacuum control motor.
5. To install, reverse the removal procedure.
