Steering Wheel

Steering Wheel

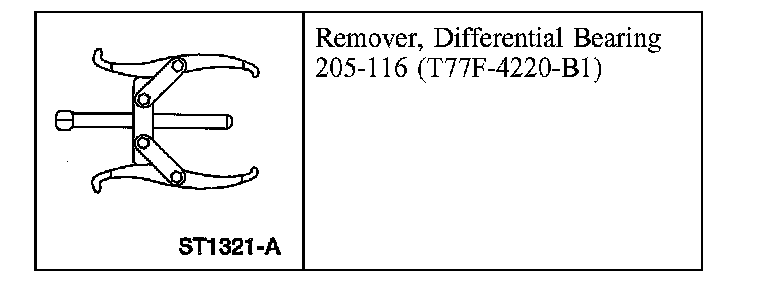

Special Tool(s)

Part 1:

Part 2:

Removal and Installation
1. Place the steering wheel in the straight-ahead position and turn the ignition switch to the OFF position.
2. Remove the driver air bag module.
3. Loosen the steering wheel bolt.

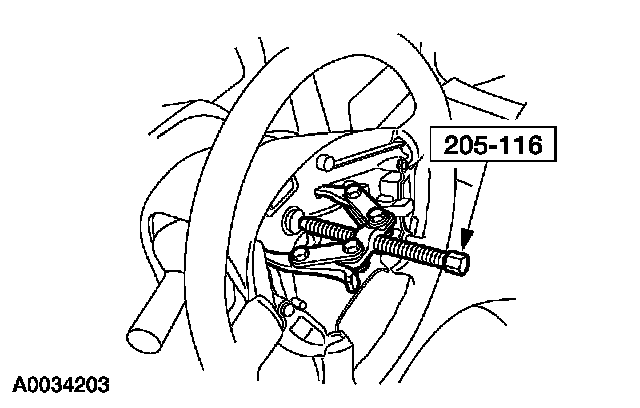

4. CAUTION: Removing the steering wheel without using a puller can damage the column bearings.

Using the special tool, separate the steering wheel from the steering column.

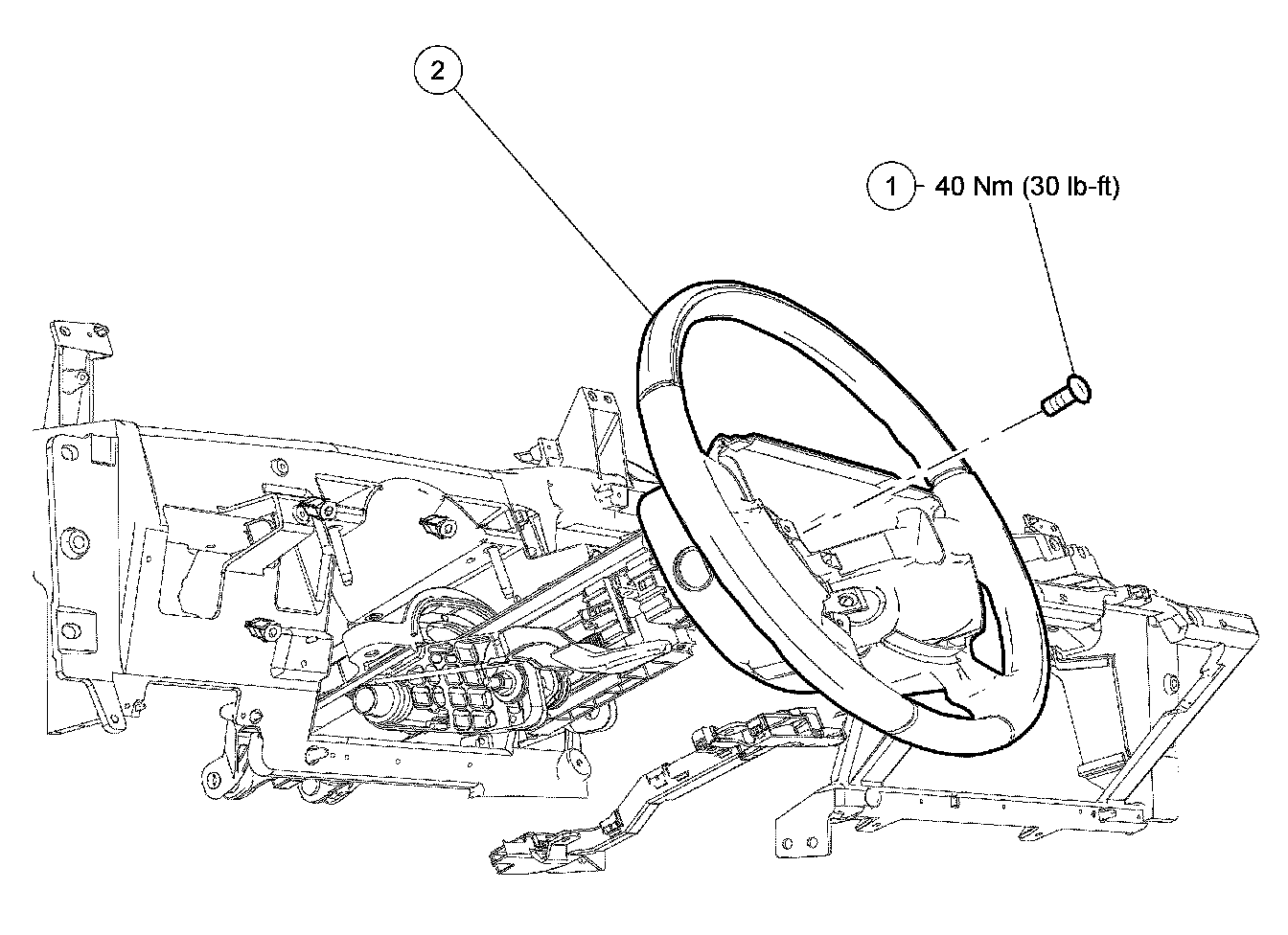

5. NOTE: A new bolt must be installed.

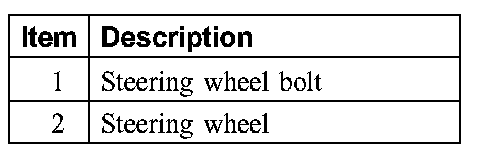

Remove and discard the steering wheel bolt.
^ To install, tighten to 40 Nm (30 ft. lbs.).
6. Remove the steering wheel.
^ Disconnect the electrical connector.
7. To install, reverse the removal procedure.
