Power Steering Pump Pulley

Power Steering Pump Pulley-4.6L Engine

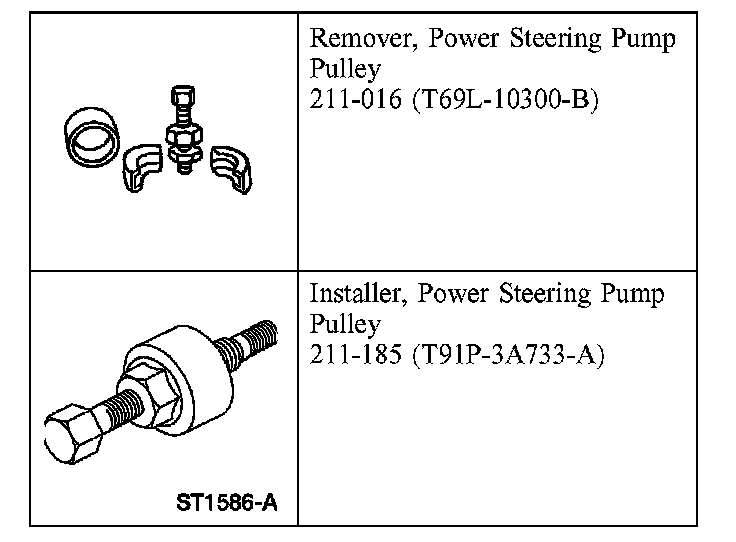

Special Tool(s)

Removal
1. Remove the engine air cleaner.
2. Rotate the tensioner and remove the engine accessory drive belt from the power steering pump pulley.

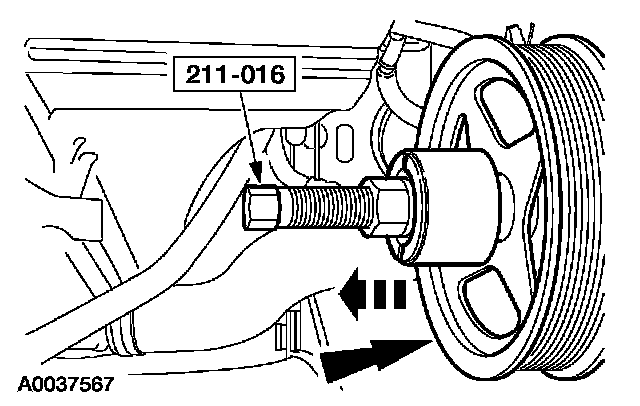

3. Using the special tool, remove the pulley.

Installation

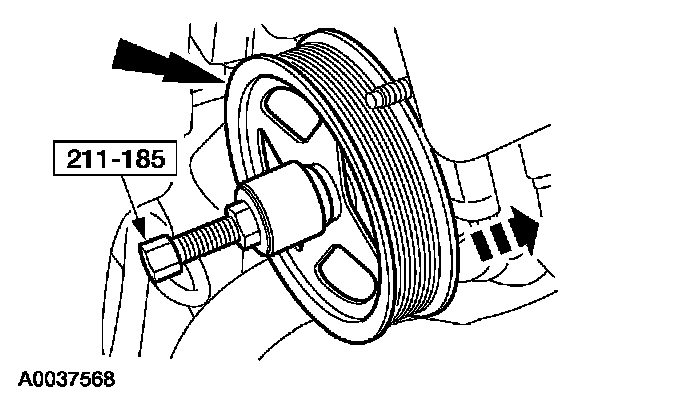

1. Using the special tool, install the pulley.
2. Rotate the tensioner and install the engine accessory drive belt on the power steering pump pulley.
3. Install the engine air cleaner.
