Power Steering Fluid Reservoir: Service and Repair

Power Steering Fluid Reservoir

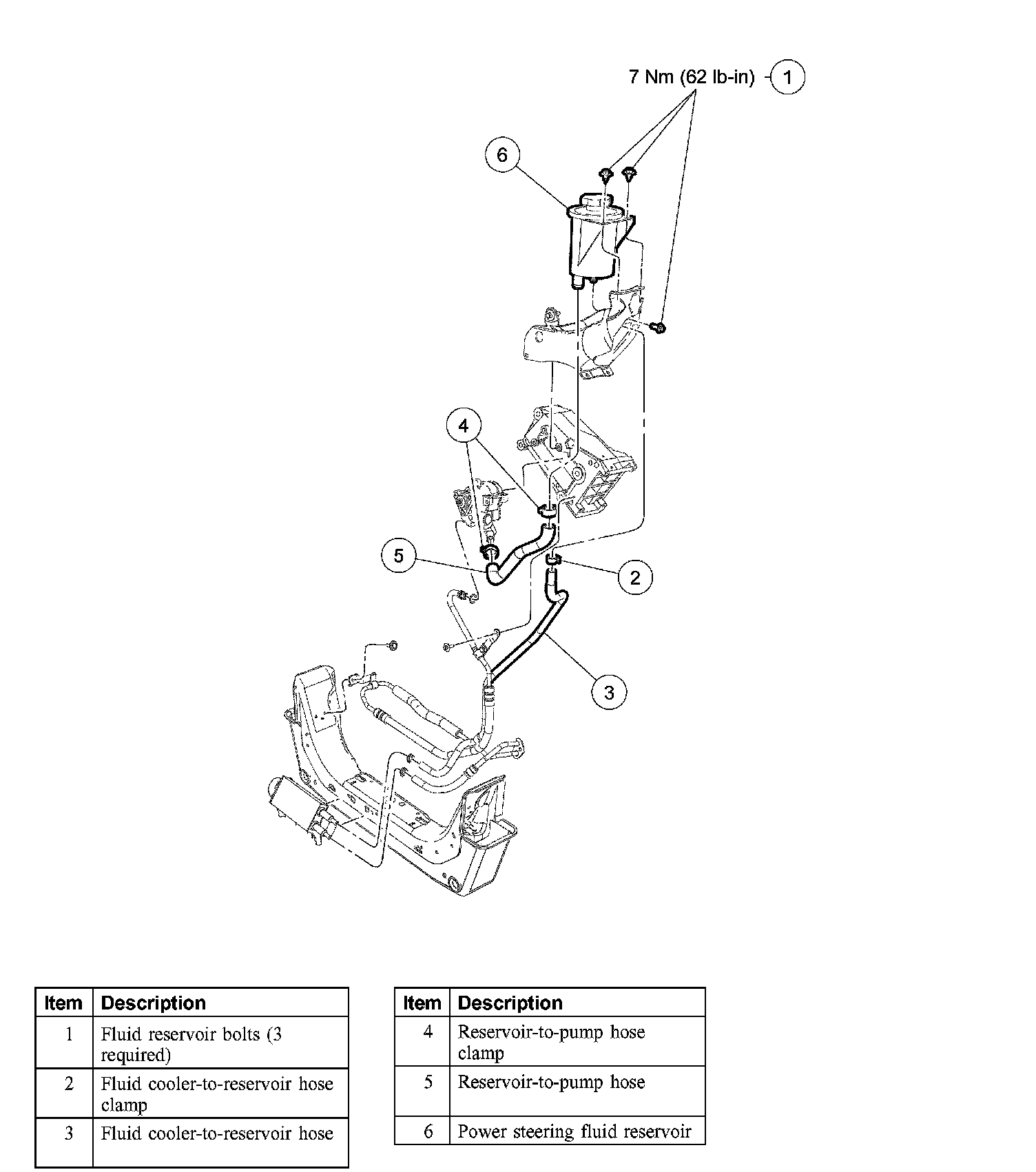

NOTE: 4.0L engine shown, 4.6L engine similar.

Removal and Installation

CAUTION: While repairing the power steering system, care should be taken to prevent the entry of contaminants or premature failure of the power steering components can result.

1. Using a suitable suction device, drain the power steering fluid reservoir.
2. Remove the 3 fluid reservoir bolts.
^ To install, tighten to 7 Nm (62 inch lbs.).
3. Release the reservoir-to-pump hose clamp and remove the hose.
4. Release the power steering fluid cooler-to-reservoir hose clamp and disconnect the hose.
5. Remove the power steering fluid reservoir.
6. To install, reverse the removal procedure.
^ Fill the power steering system.
