Brake Fluid Pressure Sensor/Switch: Service and Repair

Brake Pressure Transducer








Removal and Installation

WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.

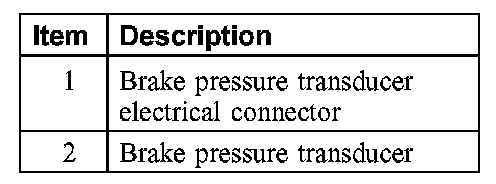

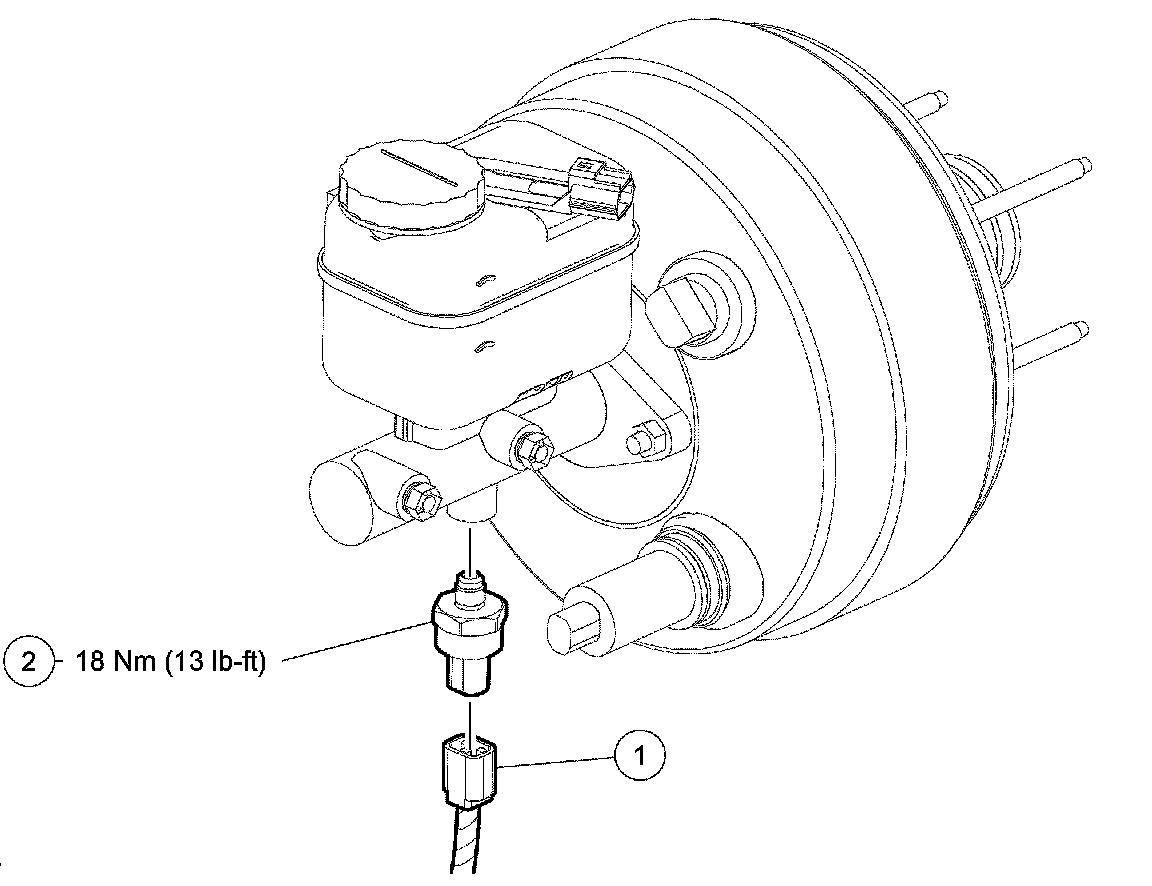

1. Disconnect the brake pressure transducer electrical connector.
2. Remove the brake pressure transducer.
^ To install, tighten to 18 Nm (13 ft. lbs.).

3. To install, reverse the removal procedure.
^ Bleed the brake system.
