Parking Brake Shoe: Service and Repair

Parking Brake Shoes

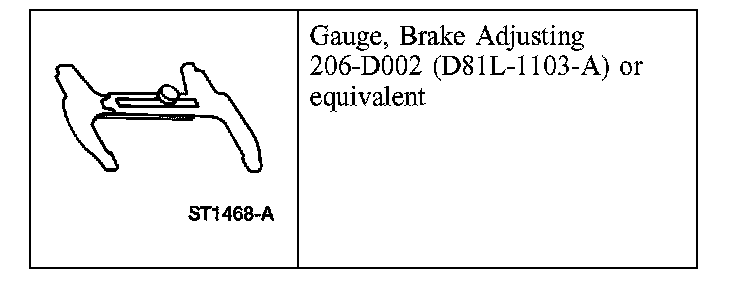

Special Tools And Equipment:

Special Tool(s)





Removal

NOTE: A parking brake shoe kit contains the linings required for both the LH and RH side.

1. NOTE: Make sure the parking brake control is fully released.

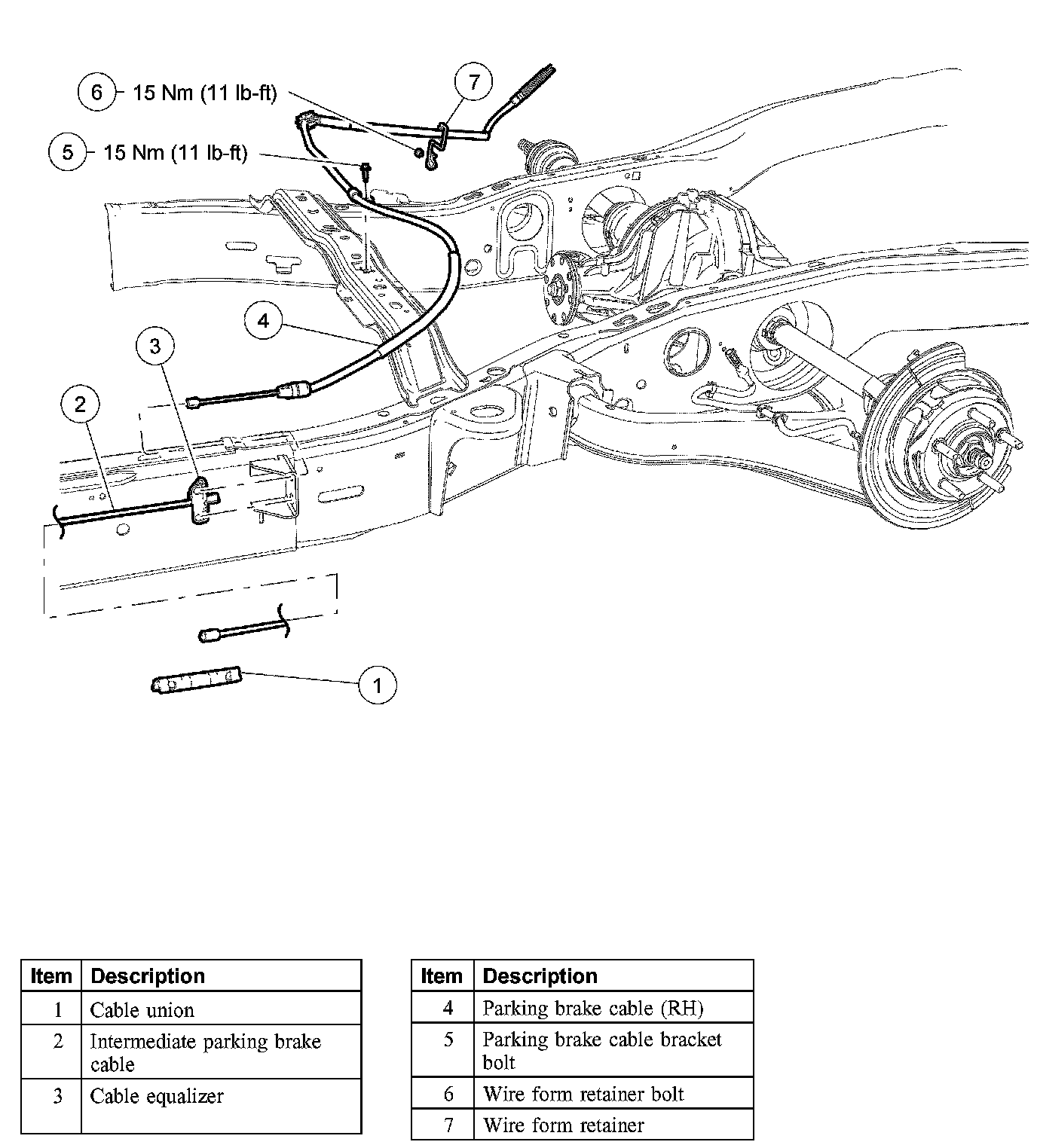

Release the tension on the parking brake cable.
2. Remove the rear brake disc.
3. Remove the parking brake shoe adjusting screw.
4. Remove the parking brake shoe adjusting screw spring.
5. Remove the 2 parking brake shoe hold down springs and pins.
6. Remove the parking brake shoe retracting spring and the parking brake shoes.

Installation
1. Position the parking brake shoes and attach the retracting spring.
2. Install the 2 parking brake shoe hold down pins and springs.
3. Install the parking brake shoe adjusting screw spring.

4. NOTE: Completely retract the parking brake adjusting screw before installation.

Install the brake shoe adjusting screw.
5. Use the Brake Adjusting Gauge to measure the inside diameter of the parking brake drum.
6. Adjust the parking brake shoe clearance of 1.07 mm (0.04 in) less than the inside diameter of the parking brake drum.
^ Make sure that the parking brake shoes are correctly centered and measure across the center point of the shoes.
^ Rotate the parking brake shoe adjuster wheel to achieve the correct parking brake shoe to brake disc clearance.

7. Install the rear brake disc.
8. Reload the tension on the parking brake cable.
