Brake Caliper Anchor Plate

Brake Caliper Anchor Plate

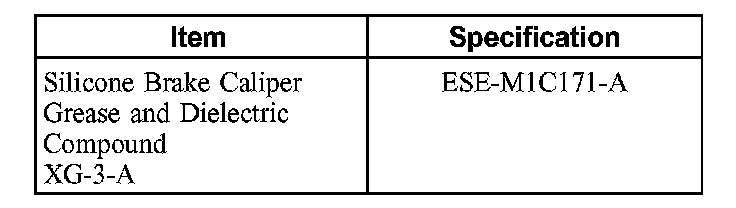

Material:

Material

Removal and Installation
1. Remove the brake pads.
2. Remove and discard the 2 brake caliper anchor plate bolts and remove the brake caliper anchor plate.
^ To install, tighten to 136 Nm (100 ft. lbs.).

3. To install, reverse the removal procedure.
^ Lubricate the brake caliper guide and locator pins with silicone grease.
