Brake Disc Shield Removal and Installation

Brake Disc Shield

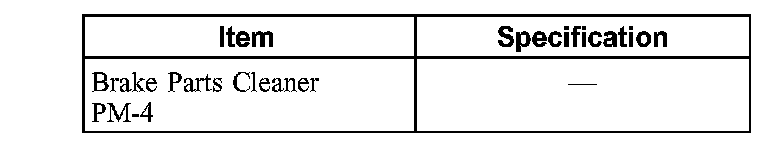

Material:

Material

Removal
1. Remove the parking brake shoes.
2. Remove the 3 brake disc shield bolts.





3. Cut the shield at the perforations and remove the brake disc shield halves.

Installation

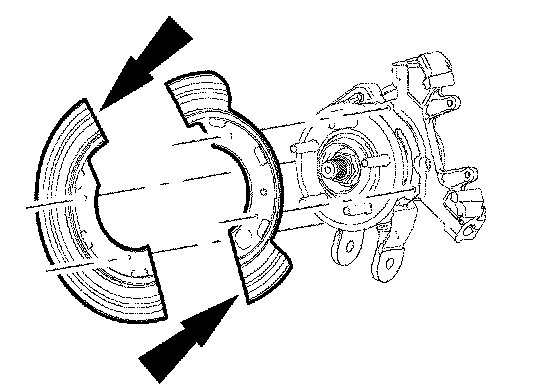

1. NOTE: If installing a new brake disc shield, cut the new shield in two at the perforations.

Position the brake disc shield halves, and install the 2 bolts (part number W505321 S426) in each half.
^ Tighten to 12 Nm (9 ft. lbs.).

2. Install the parking brake shoes.
