Wheel Speed Sensor Rear, 4 Channel

Wheel Speed Sensor Rear, 4 Channel

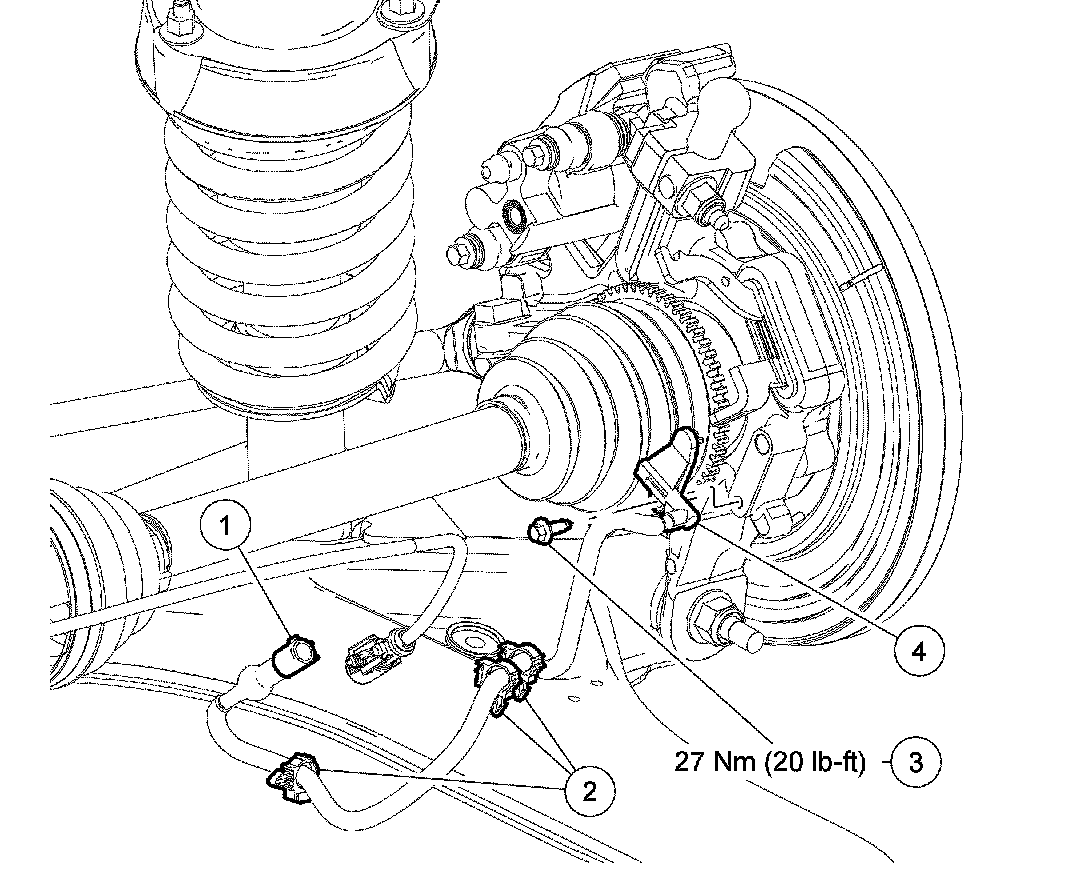

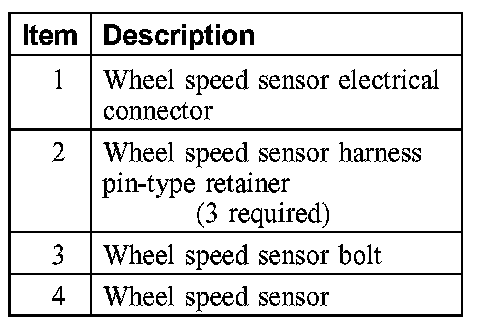

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the wheel speed sensor electrical connector.
3. Disconnect the 3 wheel speed sensor harness pin type retainers.
4. Remove the wheel speed sensor bolt.
^ To install, tighten to 27 Nm (20 ft. lbs.).

5. Remove the wheel speed sensor and harness assembly.
6. To install, reverse the removal procedure.
