Flex Plate: Service and Repair

Flexplate








Removal
1. Remove the transmission.

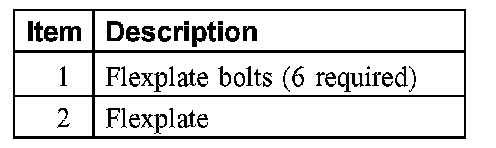

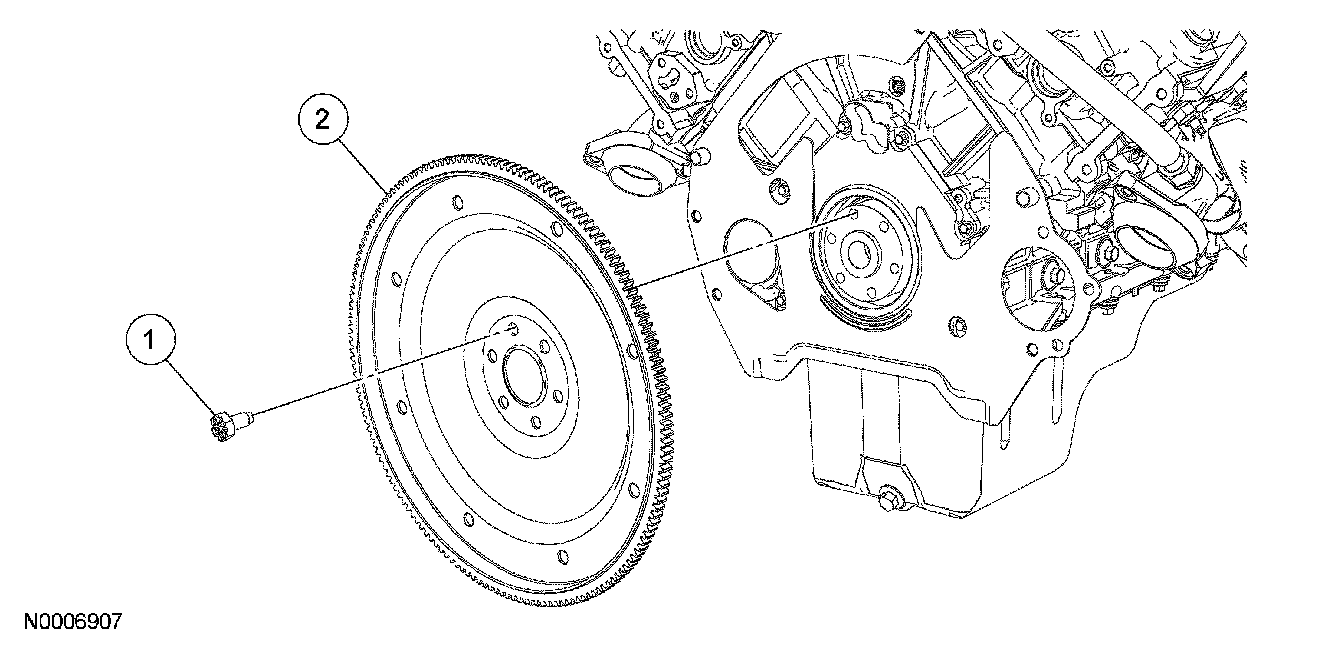

2. Remove the bolts and the flexplate.

Installation

1. CAUTION: Special bolts are used for flexplate installation. Do not use standard bolts.

Position the flexplate and install the bolts finger tight.

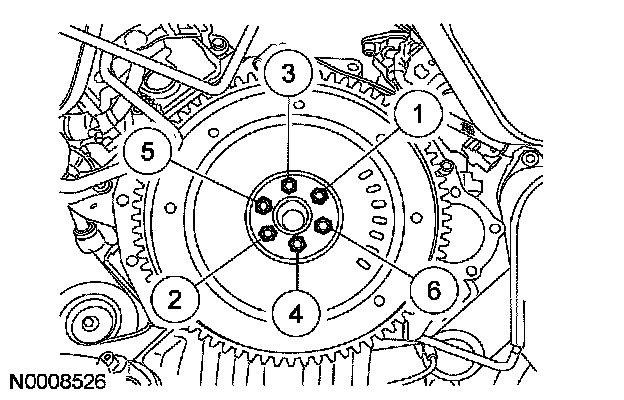

2. Tighten the bolts in the sequence shown to 80 Nm (59 ft. lbs.).
3. Install the transmission.
