Driveshaft Slip Yoke Boot

Driveshaft Slip Yoke Boot

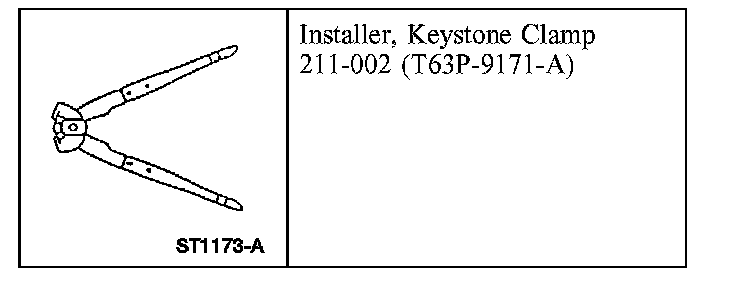

Special Tool(s)

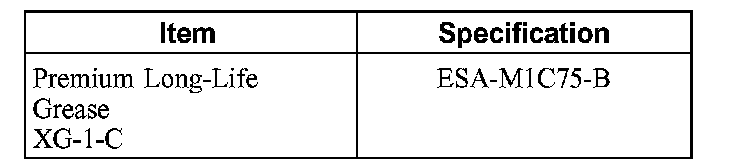

Material

Removal
1. Remove the driveshaft.

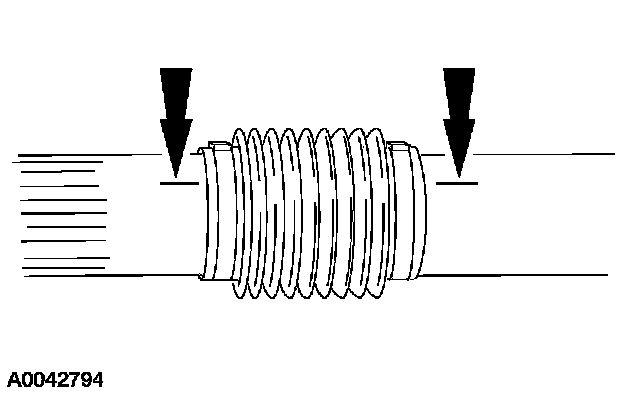

2. Index-mark the driveshaft on both sides of the driveshaft slip yoke boot.
3. Remove and discard the driveshaft slip yoke boot clamps.
4. Separate the driveshaft.
5. Remove the driveshaft slip yoke boot.

Installation

1. NOTE: Grease both ends of the driveshaft.

Position the driveshaft slip yoke boot and the driveshaft slip yoke boot clamps on one end of the driveshaft.

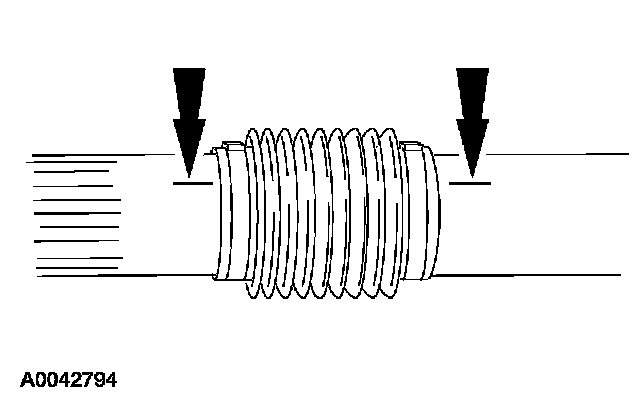

2. Align the index marks and connect the driveshaft.

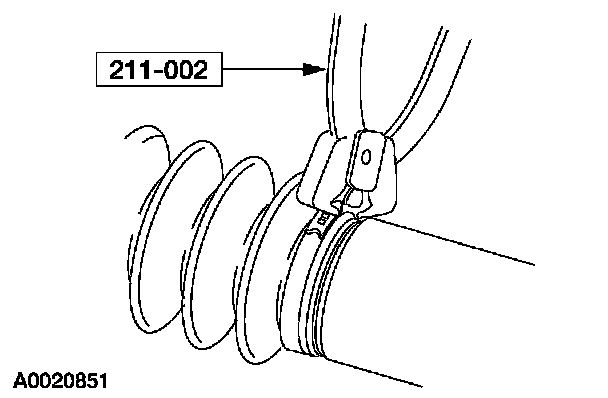

3. Using the special tool, install the new driveshaft slip yoke boot.
4. Install the driveshaft.
