Shifter A/T: Service and Repair

Transmission Selector Lever

Removal and Installation
1. With the vehicle in PARK, position it on a hoist.

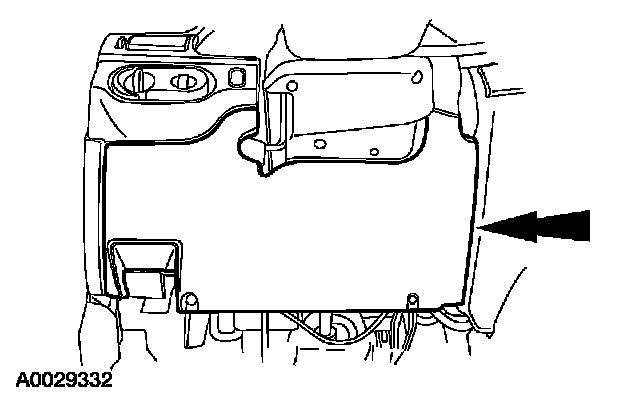

2. Remove the screws and the lower steering column opening finish panel.

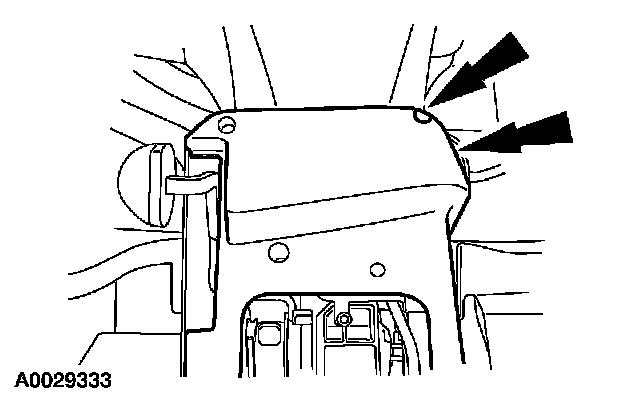

3. Remove the 3 screws and the lower steering column shroud.

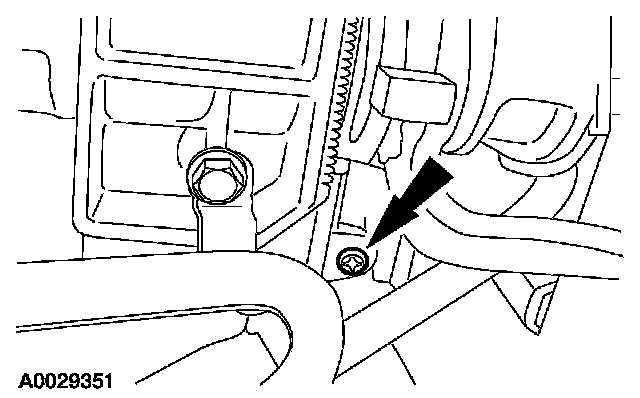

4. Remove the screw retaining the upper steering column shroud to the steering column.

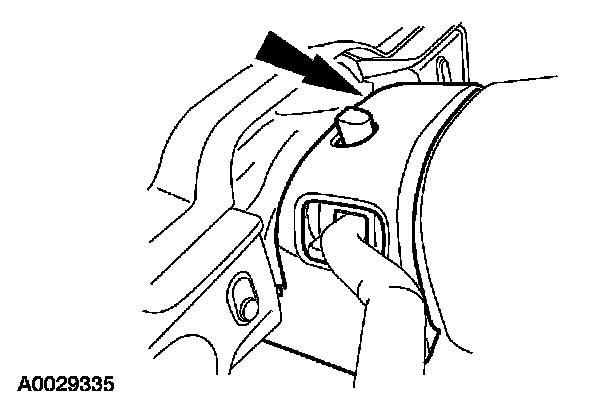

5. Remove the upper steering column shroud.





6. CAUTION: Install a new transmission selector lever pin when installing the transmission selector lever.

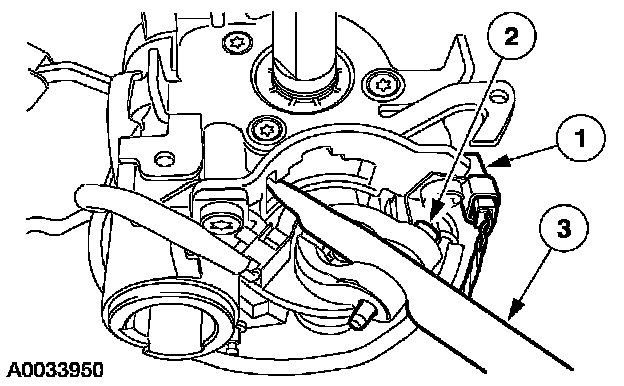

Remove the transmission selector lever.
1 Disconnect the Transmission Control Switch (TCS) electrical connector.
2 Remove and discard the transmission selector lever pin.
3 Remove the transmission selector lever.
7. To install, reverse the removal procedure.
^ Verify the TCS operation.
