Heater Core: Service and Repair

HEATER CORE

Removal and Installation

REMOVAL
1. Remove heater & cooling unit assembly. Removal and Replacement




2. Remove mounting screws, and then remove heater pipe cover.
3. Remove mounting screws, and then remove foot duct (left).

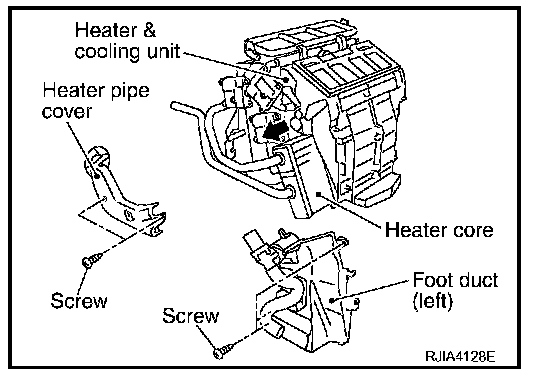

4. Slide heater core (shown in the figure) to leftward.

INSTALLATION
Installation is basically the reverse order of removal.
